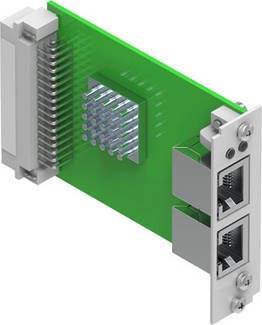

FESTO Interface 1911916 CAMC-F-PN 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 373.95 / piece)
€ 373.95
plus VAT.
14-day return policy included
Highlights & Details
Technical specifications
- Dimensions W x L x H 19 mm x 90 mm x 65 mm
- Baud rate 10/100 Mbps (Full/Half)
- Mounting type: Plug-in module for CMMP-AS...-M3
- CE mark (see declaration of conformity): According to EU EMC directive
- All mounting positions permitted
- Fieldbus interface: 2x socket RJ45
- IP address assignment: FCT
- DCP
- Communication profile: FHPP
- Configuration support: GSDML
- Storage temperature: -25 ... 70 °C
- LED displays: Bus error
- Ethernet communication activity
- Ethernet line monitoring
- System error
- Media redundancy: MRP
- Minimum cycle time: 1 ms
- Parameterization: FCT
- Product weight: 75 g
- Protocol: PROFINET
- Relative humidity: 5 - 95 %
- not condensing
- Protection class: IP20
- In mounted condition
- Topologies: Star
- Keyring
- Line
- Ambient temperature: 0 ... 50 °C
- Material note: Substances containing labs contain
- Complies with RoHS
- Additional functions: Conformance Class B.
- DCP
- IRT compatible
- LLDP
- MRP
- PROFIenergy
- Real-time class 1
- SNMP
- Product type
Interface
- Manufacturer part #
1911916
- Length
90 mm
- Max. ambient temperature
+50 °C
- Min. ambient temperature
0 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2204781 FESTO Interface 1911916 CAMC-F-PN 1 pc(s)
