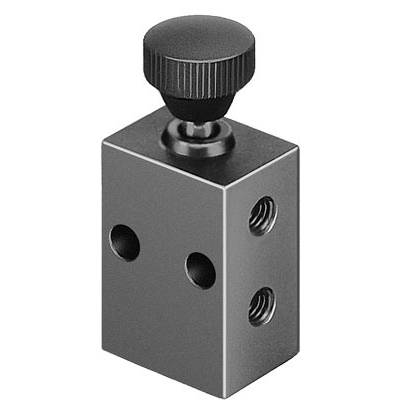

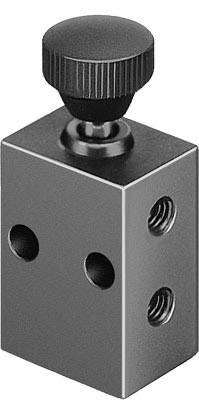

FESTO K-3-M5 Push button valve -0.95 up to 8 bar External thread M5 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 84.03 / piece)
€ 84.03
plus VAT.
14-day return policy included
Highlights & Details
Pushbutton valve K-3-M5
Technical specifications
- Operating medium
According to ISO 8573-1:2010 [compressed air -:-:-]
- Product type
Pushbutton valve
- External thread
M5
- Min. display range
-0.95 bar
- Display range (max.)
8 bar
- Manufacturer part #
3660
- Connection
M5
- Max. operating pressure
8 bar
- Operating pressure (min.)
-0.95 bar
- Pressure range
-0.95 up to 8 bar
- Operating medium
Compressed air
- Sealant
NBR
- Max. flow
80 l/min
- Function
3/2-way
- Enclosure material
Zinc (die-cast)
- Weight
28 g
- Nominal width
2 mm
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-10 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1896563 FESTO K-3-M5 Push button valve -0.95 up to 8 bar External thread M5 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1896563 FESTO K-3-M5 Push button valve -0.95 up to 8 bar External thread M5 1 pc(s)
Information
Information 1896563 FESTO K-3-M5 Push button valve -0.95 up to 8 bar External thread M5 1 pc(s)
Description
Innovative
· Small, compact for a wide range of pneumatic applications
· Numerous selectable valve functions; 3/2-way, and 5/2-way functions
· With a flow of up to 1000 l/min offer the VHEMVentile high pneumatic performance for a variety of tasks.
· Lightweight
· Low operating forces
Multipurpose
· The flexibility of the pneumatic work ports free individual requirements in line with the practice
· Round silencer for mounted exhaust air
· Partially suitable for vacuum
· Partially reverse operation possible
· Actuation: directly and pre-controls
· Pressure range of vacuum up to 10 bar possible
Reliable
· Durable through proven piston valves, and piston valves
· Robust through metal or plastic casing and connecting thread, or Connectors
Easy to install
· Front panel or on mounting bracket can be mounted
This text is machine translated.
· Small, compact for a wide range of pneumatic applications
· Numerous selectable valve functions; 3/2-way, and 5/2-way functions
· With a flow of up to 1000 l/min offer the VHEMVentile high pneumatic performance for a variety of tasks.
· Lightweight
· Low operating forces
Multipurpose
· The flexibility of the pneumatic work ports free individual requirements in line with the practice
· Round silencer for mounted exhaust air
· Partially suitable for vacuum
· Partially reverse operation possible
· Actuation: directly and pre-controls
· Pressure range of vacuum up to 10 bar possible
Reliable
· Durable through proven piston valves, and piston valves
· Robust through metal or plastic casing and connecting thread, or Connectors
Easy to install
· Front panel or on mounting bracket can be mounted
This text is machine translated.
