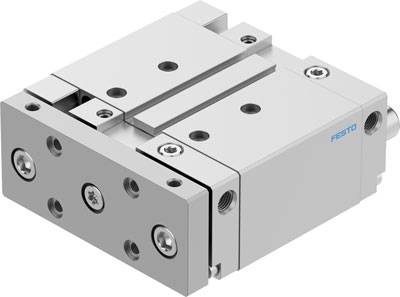

FESTO Linear drive 609361 DFM-50-50-B-PPV-A-KF Enclosure material: Aluminium wrought alloy Stroke length: 50 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Product type
Linear drive
- Stroke length
50 mm
- Max. operating pressure
10 bar
- (Ø)
50 mm
- Min. device temperature
-5 °C
- Device temperature (max.)
60 °C
- Manufacturer part #
609361
- Size
50
- Min. operating pressure
1 bar
- Operating medium
Compressed air
- Sealant
NBR
- Enclosure material
Aluminium wrought alloy
- Piston rod material
Non-corrosive steel
- Force (max.)
1178 N
- Material
Aluminium wrought alloy
- Medium
Compressed air
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-5 °C
- Operating principle
Double-acting
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2802898 FESTO Linear drive 609361 DFM-50-50-B-PPV-A-KF Enclosure material: Aluminium wrought alloy Stroke length: 50 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2802898 FESTO Linear drive 609361 DFM-50-50-B-PPV-A-KF Enclosure material: Aluminium wrought alloy Stroke length: 50 mm 1 pc(s)
Description
Guide cylinder DFM-50-50-B-PPV-A-KF stroke=50 mm, piston diameter=50 mm, operating mode drive unit=yoke, damping=PPV: Pneumatic damping adjustable on both sides, installation position=arbitrary
This text is machine translated.
