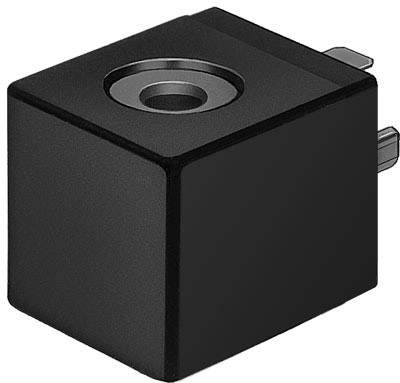

FESTO Magnet coil 170152 MSN1W-24AC/12DC 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 17.64
3
5% = € 0.88
€ 16.76
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 17.64 / piece)
€ 17.64
plus VAT.
14-day return policy included
Highlights & Details
Technical specifications
- Coil characteristics: 24 V/AC 50 Hz, pick-up power 7.5 VA, holding power 5 VA; 24V/AC 60 Hz, pick-up power 5 VA, holding power 3.7 VA; 12 V/DC 5 W
- Product type
Magnet coil
- Enclosure material
PA
- Media temperature (range)
-10 up to +50 °C
- Manufacturer part #
170152
- Type
Electrical connection: connection image, 3-pole, clipbar
- Weight
80 g
- Max. media temperature
+50 °C
- Media temperature (min.)
-10 °C
IP65
- Max. ambient temperature
+50 °C
- Min. ambient temperature
-10 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2116173 FESTO Magnet coil 170152 MSN1W-24AC/12DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2116173 FESTO Magnet coil 170152 MSN1W-24AC/12DC 1 pc(s)
Information
Information 2116173 FESTO Magnet coil 170152 MSN1W-24AC/12DC 1 pc(s)
Information 2116173 FESTO Magnet coil 170152 MSN1W-24AC/12DC 1 pc(s)
Description
Solenoid MSN 1W-24 AC/12DC for alternating voltage, without power. Installation position=any, Min. Reaction time = 10 ms, switch-on duration = 100%, power factor cos {phi} = 0.7, coil characteristics = (* 12 V DC 5 W, 24 V AC 50 Hz, tightening power 7.5 VA, holding power 5 VA, * 24 V AC 60 Hz, pick-up power 5 VA, holding power 3.7 VA)
This text is machine translated.
This text is machine translated.
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
