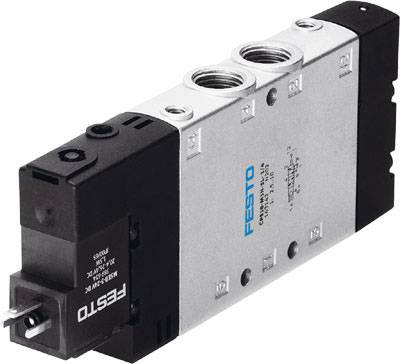

FESTO Magnetic valve 163142 CPE18-M1H-5L-1/4 G 1/4 Nominal width (details) 8 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 163.86 / piece)
€ 163.86
plus VAT.
Only 2 Piece(s) available
Highlights & Details
Magnetic valve CPE18-M1H-5L-1/4
- Small width
- Flow Volume
Technical specifications
- Product type
Magnetic valve
- Max. operating pressure
10 bar
- Enclosure material
Aluminium (die-cast)
- Connection
G 1/4
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Media temperature (range)
-5 up to 50 °C
- Manufacturer part #
163142
- Type
Normal rated flow: 1500 l/min
- Operating pressure (min.)
2.5 bar
- Sealant
NBR
- Function
5/2 mono-stable
- Weight
220 g
- Max. media temperature
50 °C
- Media temperature (min.)
-5 °C
- Nominal width
8 mm
- Features
P port connector (G1/4)
- Width
18 mm
IP65
- Max. ambient temperature
50 °C
- Min. ambient temperature
-5 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1940661 FESTO Magnetic valve 163142 CPE18-M1H-5L-1/4 G 1/4 Nominal width (details) 8 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1940661 FESTO Magnetic valve 163142 CPE18-M1H-5L-1/4 G 1/4 Nominal width (details) 8 mm 1 pc(s)
Information
Information 1940661 FESTO Magnetic valve 163142 CPE18-M1H-5L-1/4 G 1/4 Nominal width (details) 8 mm 1 pc(s)
Description
For many years, tried and tested millions of times and still champion in its class
The Valve CPE is the strongest flow valve in relation to its small width.
Its high plant availability and long life of over 100 million switching operations make CPE to a much sought-after part of plant and machinery. And its
Compact performance of high flow at narrow width a simple before ort-montage even in narrow installation conditions.
Energy saving!
Whether as a single valve or valve battery on robust aluminum circuit bar. The Valve Family CPE impresses not usually only by a low heat generation due to the minimal electrical
Power consumption of 1 or 1.5 Watt. But also through a pneumatic efficiency: the soft sealing cartridge principle provides for minimal leakage. For the economic operation
The high flow and the large pressure range of -0.9… 10 bar.
This text is machine translated.
The Valve CPE is the strongest flow valve in relation to its small width.
Its high plant availability and long life of over 100 million switching operations make CPE to a much sought-after part of plant and machinery. And its
Compact performance of high flow at narrow width a simple before ort-montage even in narrow installation conditions.
Energy saving!
Whether as a single valve or valve battery on robust aluminum circuit bar. The Valve Family CPE impresses not usually only by a low heat generation due to the minimal electrical
Power consumption of 1 or 1.5 Watt. But also through a pneumatic efficiency: the soft sealing cartridge principle provides for minimal leakage. For the economic operation
The high flow and the large pressure range of -0.9… 10 bar.
This text is machine translated.
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
