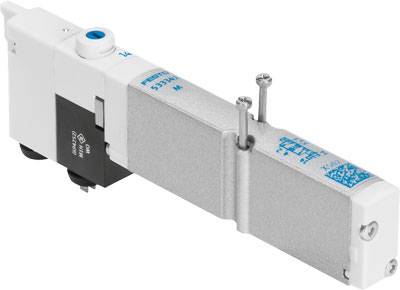

FESTO Magnetic valve 533342 VMPA1-M1H-M-PI Nominal width (details) 10 mm 5/2 or 3/2 way 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 84.03 / piece)
€ 84.03
plus VAT.
Only 4 Piece(s) available
Highlights & Details
Magnetic valve VMPA1-M1H-M-PI
Technical specifications
- Product type
Magnetic valve
- Max. operating pressure
10 bar
- Enclosure material
Aluminium (die-cast)
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Media temperature (range)
-5 up to 50 °C
- Manufacturer part #
533342
- Type
Normal rated flow 360 l/min
- Operating pressure (min.)
-0.9 bar
- Sealant
NBR
- Function
5/2 mono-stable
- Weight
49 g
- Max. media temperature
50 °C
- Media temperature (min.)
-5 °C
- Medium
Compressed air
- Nominal width
10 mm
- QNn value
360 l/min
IP65
- Control pressure (max.)
8 bar
- Control pressure (min.)
3 bar
- Max. ambient temperature
50 °C
- Min. ambient temperature
-5 °C
- Operating principle
5/2 or 3/2 way
Documents & Downloads
Datasheet
Datasheet 1941364 FESTO Magnetic valve 533342 VMPA1-M1H-M-PI Nominal width (details) 10 mm 5/2 or 3/2 way 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1941364 FESTO Magnetic valve 533342 VMPA1-M1H-M-PI Nominal width (details) 10 mm 5/2 or 3/2 way 1 pc(s)
Information
Information 1941364 FESTO Magnetic valve 533342 VMPA1-M1H-M-PI Nominal width (details) 10 mm 5/2 or 3/2 way 1 pc(s)
Description
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
