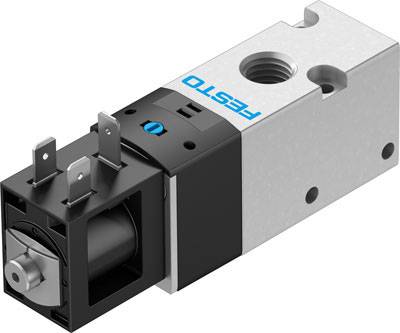

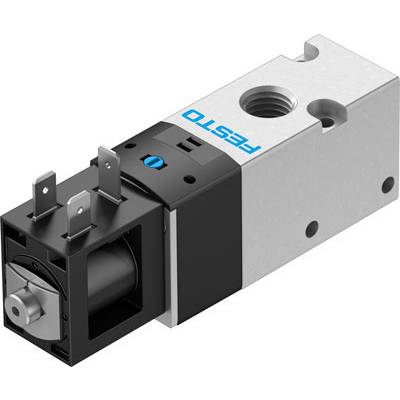

FESTO Magnetic valve 8043217 VUVS-LK25-M32C-AD-G14-1B2-S 24 V DC G 1/4 Nominal width (details) 6.7 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 63.86 / piece)
€ 63.86
plus VAT.
Only 1 Piece(s) available
Highlights & Details
Magnetic valve VUVS-LK25-M32C-AD-G14-1B2-S
Technical specifications
- Product type
Magnetic valve
- Operating voltage
24 V DC
- Max. operating pressure
8 bar
- Enclosure material
Aluminium wrought alloy
- Connection
G 1/4
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Media temperature (range)
-5 up to +50 °C
- Manufacturer part #
8043217
- Operating pressure (min.)
1.5 bar
- Operation
Electrically
- Sealant
HNBR
NBR
- Max. flow
1000 l/min
- Function
3/2-way
- Weight
200 g
- Max. media temperature
+50 °C
- Media temperature (min.)
-5 °C
- Nominal width
6.7 mm
- Features
P port connector (G1/4)
IP65
- Max. ambient temperature
+50 °C
- Min. ambient temperature
-5 °C
- Current consumption
3.3 W
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1893821 FESTO Magnetic valve 8043217 VUVS-LK25-M32C-AD-G14-1B2-S 24 V DC G 1/4 Nominal width (details) 6.7 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1893821 FESTO Magnetic valve 8043217 VUVS-LK25-M32C-AD-G14-1B2-S 24 V DC G 1/4 Nominal width (details) 6.7 mm 1 pc(s)
Information
Information 1893821 FESTO Magnetic valve 8043217 VUVS-LK25-M32C-AD-G14-1B2-S 24 V DC G 1/4 Nominal width (details) 6.7 mm 1 pc(s)
Description
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
