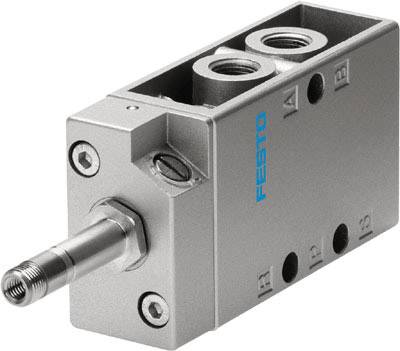

FESTO Magnetic valve 9982 MFH-5-1/8 G 1/8 Nominal width (details) 5 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 155.45 / piece)
€ 155.45
plus VAT.
Only 5 Piece(s) available
Highlights & Details
Magnetic valve MFH-5-1/8
Technical specifications
- Product type
Magnetic valve
- Max. operating pressure
8 bar
- Enclosure material
Aluminium (die-cast)
- Connection
G 1/8
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Operating temperature
-5 °C (min)
- Media temperature (range)
-10 up to +60 °C
- Manufacturer part #
9982
- Operating pressure (min.)
1.8 bar
- Min. operating temperature
-5 °C
- Operation
Electrically
- Sealant
NBR
PUR
- Max. flow
500 l/min
- Function
5/2 mono-stable
- Weight
270 g
- Max. media temperature
+60 °C
- Media temperature (min.)
-10 °C
- Medium
Compressed air
- Nominal width
5 mm
- Features
Electrically actuated
- Width
26 mm
- QNn value
500 l/min
IP65
- Max. ambient temperature
+40 °C
- Min. ambient temperature
-5 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1896580 FESTO Magnetic valve 9982 MFH-5-1/8 G 1/8 Nominal width (details) 5 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1896580 FESTO Magnetic valve 9982 MFH-5-1/8 G 1/8 Nominal width (details) 5 mm 1 pc(s)
Information
Information 1896580 FESTO Magnetic valve 9982 MFH-5-1/8 G 1/8 Nominal width (details) 5 mm 1 pc(s)
Information 1896580 FESTO Magnetic valve 9982 MFH-5-1/8 G 1/8 Nominal width (details) 5 mm 1 pc(s)
Description
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
