FESTO Manual control valve H-5-1/4-B 8995 -0.95 up to 10 bar 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 281.51 / piece)
€ 281.51
plus VAT.
14-day return policy included
Highlights & Details

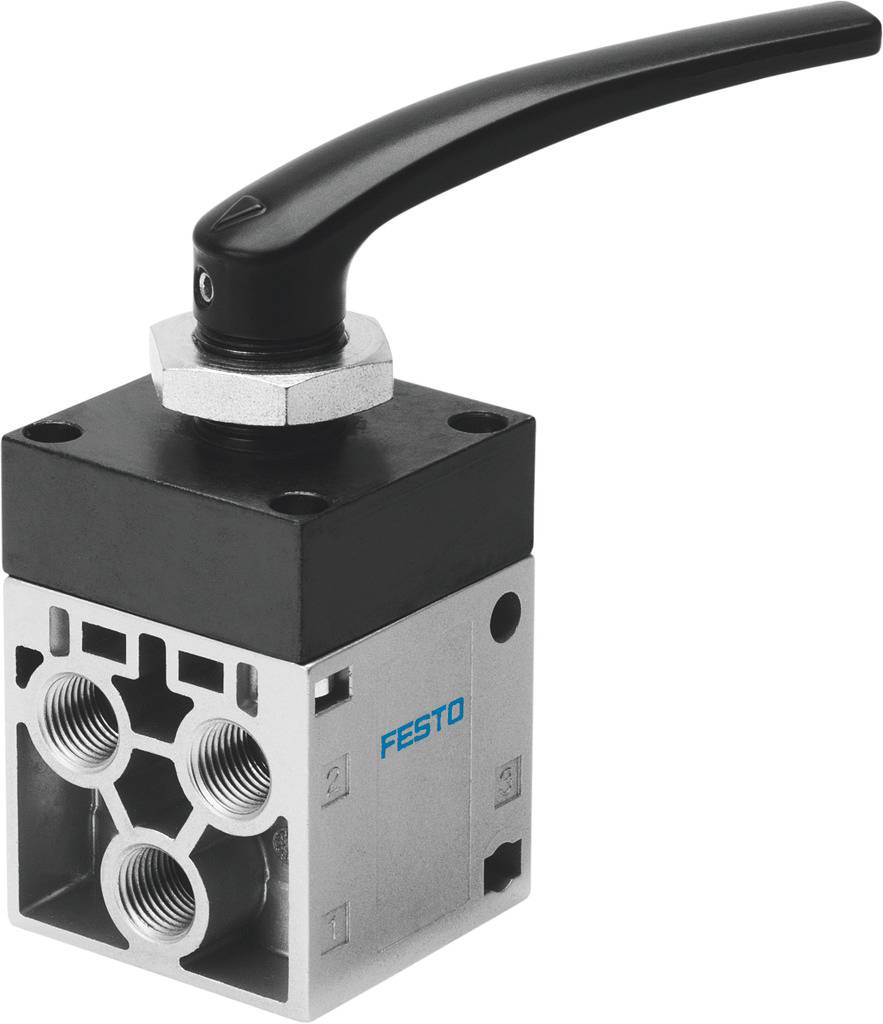

Manual control valve H-5-1/4-B
Technical specifications
- Product type
Manual control valve
- Min. display range
-0.95 bar
- Display range (max.)
10 bar
- Type
Manual lever valve H -5-1/4-B valve function = 5/2 bi-stable, normal rated flow = 550 l / min, Operating pressure = -0,95 - 10 bar, constructive design = plate seat, nominal width = 7 mm
- Operating temperature
-10 up to +60 °C
- Min. operating temperature
-10 °C
- Max. operating temperature
+60 °C
- Manufacturer part #
8995
- Max. operating pressure
10 bar
- Operating pressure (min.)
-0.95 bar
- Pressure range
-0.95 up to 10 bar
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1938622 FESTO Manual control valve H-5-1/4-B 8995 -0.95 up to 10 bar 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1938622 FESTO Manual control valve H-5-1/4-B 8995 -0.95 up to 10 bar 1 pc(s)
