FESTO Micro filter MS9-LFM-3/4-BUV-HF 552970 G 3/4 Enclosure material Aluminium (die-cast) Sealant NBR
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 542.02 / piece)
€ 542.02
plus VAT.
14-day return policy included
Highlights & Details

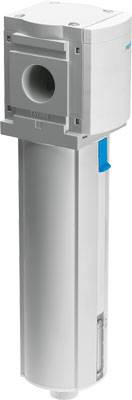

Micro filter MS9-LFM-3/4-BUV-HF
Technical specifications
- Fiber filter
- Operating medium
According to ISO 8573-1:2010 compressed air [6:8:4]
- Type
552970
- Product type
Micro filter
- Enclosure material
Aluminium (die-cast)
- Connection
G 3/4
- Max. operating pressure
12 bar
- Manufacturer part #
552970
- Size
9
- Operating pressure (min.)
2 bar
- Sealant
NBR
- Filter pore size
1 µm
- Weight
2500 g
- Material
Aluminium (die-cast)
- Material (filter)
Aluminium (die-cast)
- Media temperature (range)
-5 up to +60 °C
- Max. media temperature
+60 °C
- Media temperature (min.)
-5 °C
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-5 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1937971 FESTO Micro filter MS9-LFM-3/4-BUV-HF 552970 G 3/4 Enclosure material Aluminium (die-cast) Sealant NBR
User & Safety Instructions
User & Safety Instructions 1937971 FESTO Micro filter MS9-LFM-3/4-BUV-HF 552970 G 3/4 Enclosure material Aluminium (die-cast) Sealant NBR
Description
Wide range, highly functional components and a wide range of services:
With the series MS Festo offers a holistic concept for your compressed air treatment. Suitable for simple standard applications as well as for application-specific solutions with the highest quality requirements.
Available as a single component, pre-assembled combination from stock, application-specific combination or ready-to-install complete solution. The five sizes of the series MS achieve the highest flow rates with low space requirements.
Fine filter MS9-LFM-3/4-BUV-HF 1µm filter, metal bowl, higher flow rate, fully automatic condensate drain, flow direction from left to right. Series = MS, size=9, design = fiber filter, filter mesh = 1 µm, condensate drain = (* fully automatic, * manually momentary)
This text is machine translated.
With the series MS Festo offers a holistic concept for your compressed air treatment. Suitable for simple standard applications as well as for application-specific solutions with the highest quality requirements.
Available as a single component, pre-assembled combination from stock, application-specific combination or ready-to-install complete solution. The five sizes of the series MS achieve the highest flow rates with low space requirements.
Fine filter MS9-LFM-3/4-BUV-HF 1µm filter, metal bowl, higher flow rate, fully automatic condensate drain, flow direction from left to right. Series = MS, size=9, design = fiber filter, filter mesh = 1 µm, condensate drain = (* fully automatic, * manually momentary)
This text is machine translated.
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
