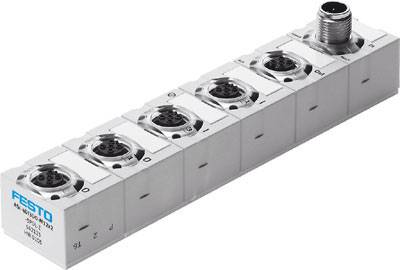

FESTO Module ASI-4DI3DO-M12X2-5POL-Z 542125 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 323.53 / piece)
€ 323.53
plus VAT.
14-day return policy included
Highlights & Details
Technical specifications
- Product type
Module
- Operating temperature
-5 °C (min)
- Manufacturer part #
542125
- Type
Class 1 - Low corrosion stress corrosion resistance: KBK
- No. of digital inputs
4
- Min. operating temperature
-5 °C
- Max. ambient temperature
+50 °C
- Min. ambient temperature
-5 °C
Documents & Downloads
Datasheet
Datasheet 2119093 FESTO Module ASI-4DI3DO-M12X2-5POL-Z 542125 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2119093 FESTO Module ASI-4DI3DO-M12X2-5POL-Z 542125 1 pc(s)
Information
Information 2119093 FESTO Module ASI-4DI3DO-M12X2-5POL-Z 542125 1 pc(s)
Description
AS-i-module ASI-4 DI3 DO-M12 X 2-5 PIN-Z allows the connection of 4 sensors and 3 actuators, with connection technology M 12. ATEX category gas = II 3G, Ex-Zundschutzart Gas = Ex nA IIC T4 X GC, ATEX category dust = II 3D Ex tc IIIC T, Ex-Zundschutzart dust = 115°C Dc IP67, Ex-Umgebungstemperatur = -5 °C ≤=Ta ≤ = +50 °C
This text is machine translated.
This text is machine translated.
Hints
The kv-value specifies the water flow through a valve in litre per minute at a pressure of hardly 1 bar and a water temperature in the range of 5 - 30 °C.
