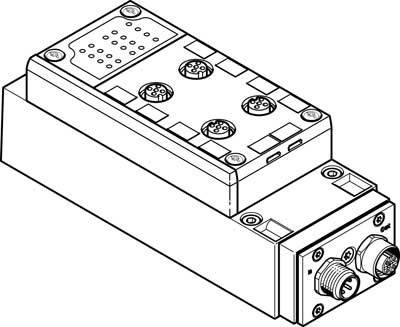

FESTO Module VAEM-S6-S-FAS-4-4E 549044 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 226.05 / piece)
€ 226.05
plus VAT.
14-day return policy included
Highlights & Details
Technical specifications
- Fieldbus interface: socket M12 x 1/4-pin, plug, M12 x, 4-pin
- Material Seals: NBR, PUR
- Max. Number of valve coils: 4
- Controls: DIL switch
- Nominal load voltage: 24 V
- Product type
Module
- Connection
Via CPX
- Material (details)
PA
- Manufacturer part #
549044
- Type
Corrosion resistance class KBK: 0 - no corrosion stress
- URDM
Feldbus V DC
- No. of digital inputs
4
- Weight
300 g
- Storage temperature
-20 °C - +60 °C
IP65
- Max. ambient temperature
+50 °C
- Min. ambient temperature
-5 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2119706 FESTO Module VAEM-S6-S-FAS-4-4E 549044 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2119706 FESTO Module VAEM-S6-S-FAS-4-4E 549044 1 pc(s)
Description
AS-i-module VAEM-S6-S-FAS -4-4 E fieldbus interface = (* socket M12 x 1/4-pin, * plug, M12 x, 4-pin), device-specific diagnostic = (* short-circuit/overload inputs, * undervoltage, * via I/O error:), mounting position=any, max. Number of valve seats = (*2 with bi-valves, *4 for mono stable valves), Max. Number of valve coils = 4
This text is machine translated.
This text is machine translated.
Hints
The kv-value specifies the water flow through a valve in litre per minute at a pressure of hardly 1 bar and a water temperature in the range of 5 - 30 °C.
