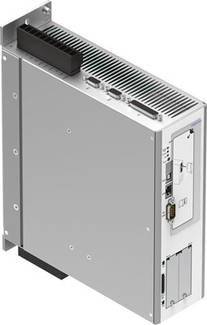

FESTO Motor controller 1501327 CMMP-AS-C5-11A-P3-M3 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 2,923.53 / piece)
€ 2,923.53
plus VAT.
14-day return policy included
Highlights & Details
Technical specifications
- Number of analogue monitor outputs: 2
- Number of analogue setpoint inputs: 2
- Number of digital logic outputs 24 V DC: 5
- Number of digital logic inputs: 10
- Display: Seven segment display
- Working range logic input: 8 ... 30 V
- Operating range of monitor outputs: ± 10 V.
- Working range of setpoint input: ± 10 V.
- Resolution monitor outputs: 9 bit
- Output frequency: 0 ... 1000 Hz
- Output voltage range AC: 3x 0 - 360 V.
- Mounting type: On connection plate
- screwed tight
- Braking resistor 68 ohms
- Bus connection: Plug
- 9-pin*
- Sub-D
- CE mark (see declaration of conformity): According to EU EMC directive
- According to EU Machinery Directive
- According to EU low-voltage directive
- Properties of digital logic outputs: Galvanically isolated
- partially freely configurable
- Properties of logic input: Galvanically isolated
- freely configurable
- Properties of monitor outputs: Short-circuit proof
- Properties of setpoint inputs: Differential inputs
- Configurable for speed
- Configurable for power
- Encoder interface output, properties: Resolution 16384 ppr
- Encoder interface output, function: Actual value feedback via encoder signals during speed control operation
- Setpoint specification for downstream slave drive
- Encoder interface input, properties: 3 phase encoder signals
- EnDat
- HIPERFACE
- RS422
- SINCOS
- Encoder interface input, function: Encoder signal speed setpoint
- In synchronous operation as speed specification of the slave drive
- Fieldbus coupling: CANopen
- DeviceNet
- EtherCAT
- Ethernet/IP
- Modbus/TCP
- PROFINET
- PROFIBUS DP
- Impedance setpoint input: 20 kOhm
- Impulse power braking resistor 8.5 kVA
- Communication profile: DS301/DSP402
- FHPP
- Storage temperature: -25 ... 70 °C
- Max current digital logic outputs: 100 mA
- Max. Fieldbus transmission rate: 1 Mbit/s.
- Max. Peak current duration: 5 s.
- Max. DC link voltage DC 560 V.
- Rated output current 5.0 A.
- Nominal operating voltage AC 400 V.
- Controller rated power 3,000 VA
- Nominal voltage logic supply DC 24 V
- Nominal current: 5.5 A
- Nominal current per phase, effective: 5.0 A.
- Line filter: Integrated
- Mains frequency: 50 ... 60 Hz
- Parameterization interface: Parameterization and commissioning
- USB
- Ethernet
- Phase nominal operating voltage: 3-phase
- Product weight: 3,450 g
- Process coupling: I/O coupling
- For 256 traversing blocks
- Relative humidity: 0 - 90 %
- Protection class: IP10
- IP20
- Peak power 6,000 VA
- Peak current per phase, effective 15 A.
- Power consumption of logic supply without parking brake: 1.0 A.
- Ambient temperature: 0 ... 40 °C).
- Pollution level: 2
- Material note: Substances containing labs contain
- Complies with RoHS
- Permissible voltage fluctuations: +/- 10 %
- Permissible range of logic voltage: ± 20 %
- Approval: RCM Mark
- C UL us - Listed (OL)
- Product type
Motor controller
- Manufacturer part #
1501327
- Max. ambient temperature
+40 °C
- Min. ambient temperature
0 °C
- UKCA
yes
