Buy FESTO Motor controller 1622901 CMMP-AS-C2-3A-M0 1 pc(s)

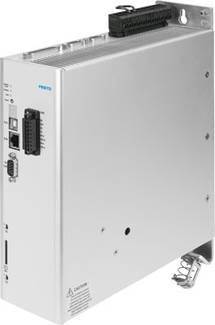

Metal control unit with connections and mounting bracket, pivotable at one corner. USB and serial interface connections are visible.

Image similar

Dispatches on Thu, 15 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 1,752.10 / piece)

€ 1,752.10

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Technical specifications

Active PFC: Yes
Number of analogue monitor outputs: 2
Number of analogue setpoint inputs: 2
Number of digital logic outputs 24 V DC: 5
Number of digital logic inputs: 10
Display: Seven segment display
Working range logic input: 8 ... 30 V
Operating range of monitor outputs: ± 10 V.
Working range of setpoint input: ± 10 V.
Resolution monitor outputs: 9 bit
Output frequency: 0 ... 1000 Hz
Output voltage range AC: 3x 0 - 270 V.
Mounting type: On connection plate
screwed tight
Braking resistor 60 Ohm
Bus connection: 9-pin
Sub-D
Box [Delete for UK]
CE mark (see declaration of conformity): According to EU EMC directive
According to EU Machinery Directive
According to EU low-voltage directive
Diagnostic coverage: 0.97
Properties of digital logic outputs: Galvanically isolated
partially freely configurable
Properties of logic input: Galvanically isolated
freely configurable
Properties of monitor outputs: Short-circuit proof
Properties of setpoint inputs: Differential inputs
Configurable for speed
Configurable for power
Encoder interface output, properties: Resolution 16384 ppr
Encoder interface output, function: Actual value feedback via encoder signals during speed control operation
Setpoint specification for downstream slave drive
Encoder interface input, properties: 3 phase encoder signals
EnDat
HIPERFACE
RS422
SINCOS
Encoder interface input, function: Encoder signal speed setpoint
In synchronous operation as speed specification of the slave drive
Fieldbus coupling: CANopen
Modbus/TCP
Hardware fault tolerance: 1
Impedance setpoint input: 20 kOhm
Impulse power braking resistor 2.8 kVA
Communication profile: DS301/DSP402
Storage temperature: -25 ... 70 °C
Max current digital logic outputs: 100 mA
Max. Fieldbus transmission rate: 1 Mbit/s.
Max. Peak current duration: 5 s.
Max. DC link voltage DC 320 V
Rated output current 2.5 A.
Nominal operating voltage 230 V AC
Controller rated power 500 VA
Nominal voltage logic supply DC 24 V
Nominal current 2 ... 3 A
Nominal current per phase, effective: 2.5 A.
Line filter: Integrated
Mains frequency: 50 ... 60 Hz
Parameterization interface: Parameterization and commissioning
USB
Ethernet
Performance Level (PL): Safely switched off moment (STO) / Category 4, Performance Level e.
Phase nominal operating voltage: 1-phase
Product weight: 2,100 g
Proof test interval: 20 a.
Process coupling: I/O coupling
For 256 traversing blocks
Relative humidity: 0 - 90 %
Safety Integrity Level (SIL): Safely switched off torque (STO) / SIL 3 / SILCL 3
Protection class: IP10
IP20
SFF Safe Failure Fraction: 99.17%
Safety function: Safely switched off torque (STO)
Safe stop 1 (SS1)
Peak power 1,000 VA
Peak current per phase, effective: 5.0 A.
Power consumption of logic supply without parking brake: 0.55 A.
Ambient temperature: 0 ... 40 °C).
Pollution level: 2
Material note: Substances containing labs contain
Complies with RoHS
Certificate issuing body: TUV Rheinland
Permissible voltage fluctuations: +/- 10 %
Permissible range of logic voltage: ± 20 %
Approval: RCM Mark
C UL us - Listed (OL)
