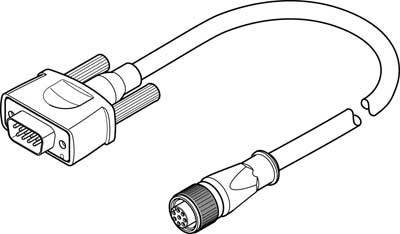

FESTO NEBM-M12G8-E-10-S1G9 550749 Encoder cable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 184.87 / piece)
€ 184.87
plus VAT.
14-day return policy included
Highlights & Details
Technical specifications
- cable diameter 6.5 mm
- Material cable sheath: TPE-U (PUR)
- Operating voltage range: 0 V/AC-30 V/AC
- Color Cable sheath: Gray
- Electrical connection 1: box, straight, M12 x 1, 8-pin
- Electrical connection 2: Plug, straight, D-sub, 9-pin
- Ambient temperature: -40°C to +70°C
- Product type
Encoder cable
- Type
NEBM-M12G8-E-10-S1G9
- Connection
Box
- Manufacturer part #
550749
- Factory colour
Grey
- Cable length
10.00 m
- Compatible with (details)
Stepper motor EMMS-ST-…
IP65
- Max. ambient temperature
+70 °C
- Min. ambient temperature
-40 °C
Documents & Downloads
Datasheet
Datasheet 2119872 FESTO NEBM-M12G8-E-10-S1G9 550749 Encoder cable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2119872 FESTO NEBM-M12G8-E-10-S1G9 550749 Encoder cable 1 pc(s)
Description
Encoder cable NEBM-M12G8-E-10-S1 G9 suitable for stepper motor EMMS-ST... Line Name = without shield support, electrical connection 1, Function = field device side, electrical connection 1, design = round, electrical connection 1, connection type = socket, electrical connection 1, straight cable outlet =
