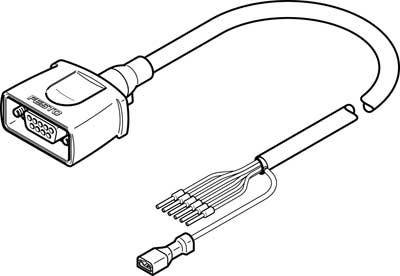

FESTO NEBM-S1G9-E-2.5-Q5-LE6 1450369 Motor cable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 92.43 / piece)
€ 92.43
plus VAT.
14-day return policy included
Highlights & Details
Technical specifications
- cable diameter 6.2 mm
- Corrosion resistance class KBK: 0 - no corrosion stress
- Material cable sheath: TPE-U (PUR)
- Color Cable sheath: Gray
- Electrical connection 1: box, straight, D-sub, 9-pin
- Electrical connection 2: cable, open end, 6-pin
- Ambient temperature: -40 °C to +80 °C
- Product type
Motor cable
- Type
NEBM-S1G9-E-2.5-Q5-LE6
- Connection
Box
- Manufacturer part #
1450369
- Cable length
2.50 m
- Compatible with (details)
Stepper motor EMMS-ST-…
IP65
- Max. ambient temperature
+80 °C
- Min. ambient temperature
-40 °C
Documents & Downloads
Datasheet
Datasheet 2122426 FESTO NEBM-S1G9-E-2.5-Q5-LE6 1450369 Motor cable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2122426 FESTO NEBM-S1G9-E-2.5-Q5-LE6 1450369 Motor cable 1 pc(s)
Description
Motor cable NEBM-S1 G9-E-2.5-Q 5-LE 6 suitable for stepper motor EMMS-ST... Line Name = without shield support, electrical connection 1, Function = field device side, electrical connection 1, design = square, electrical connection 1, connection type = socket, electrical connection 1, straight cable outlet =
