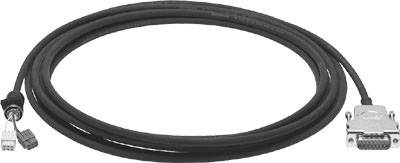

FESTO NEBM-T1G8-E-25-N-S1G15 5105628 Encoder cable 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 407.56 / piece)
€ 407.56
plus VAT.
14-day return policy included
Highlights & Details
Technical specifications
- cable diameter 6 mm
- Material cable sheath: TPE-U (PUR)
- Operating voltage range: 0 V/AC-30 V/AC
- Electrical connection 1: box, straight, ITT M3, 12-pin
- Electrical connection 2: Plug, straight, Sub-D, 15-pin
- Ambient temperature: -40 °C to +80 °C
- Product type
Encoder cable
- Type
NEBM-T1G8-E-25-N-S1G15
- Connection
Box
- Manufacturer part #
5105628
- Cable length
25.00 m
IP65
- Max. ambient temperature
+80 °C
- Min. ambient temperature
-40 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2124457 FESTO NEBM-T1G8-E-25-N-S1G15 5105628 Encoder cable 1 pc(s)
Description
Encoder cable NEBM-T1 G8-E-25-N-S1 G15 meets standard EN 61984, line name = without shield support, electrical connection 1, Function = field device side, electrical connection 1, design = square, electrical connection 1, connection type = socket
