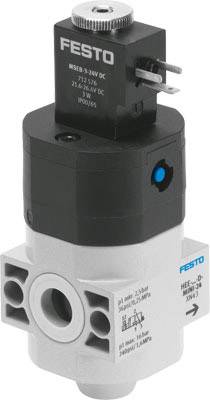

FESTO On-off valve 172956 HEE-D-MINI-24 Enclosure material Aluminium (die-cast) Sealant NBR 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 159.66 / piece)
€ 159.66
plus VAT.
Only 3 Piece(s) available
Highlights & Details
Technical specifications
- Electrical connection: Plug
- Mounting type: cable installation, with accessories
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4],, inert gases
- Product type
On-off valve
- Enclosure material
Aluminium (die-cast)
- Connection
G 1/8
- Max. operating pressure
16 bar
- Operation
Electrically
- Type
Corrosion resistance class KBK: 2-moderate corrosion stress
- Manufacturer part #
172956
- Size
Mini
- Operating pressure (min.)
2.5 bar
- Sealant
NBR
- Function
3/2 normally closed mono-stable
- Weight
223 g
- Media temperature (range)
-10 up to +60 °C
- Max. media temperature
+60 °C
- Media temperature (min.)
-10 °C
- Features
Electrically actuated
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-10 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2116299 FESTO On-off valve 172956 HEE-D-MINI-24 Enclosure material Aluminium (die-cast) Sealant NBR 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2116299 FESTO On-off valve 172956 HEE-D-MINI-24 Enclosure material Aluminium (die-cast) Sealant NBR 1 pc(s)
Information
Information 2116299 FESTO On-off valve 172956 HEE-D-MINI-24 Enclosure material Aluminium (die-cast) Sealant NBR 1 pc(s)
Description
Switch-on valve Hee-D MINI-24 for maintenance equipment, without thread connection plates with FRB-threaded bolts. Design = piston valves, operating method = electrically, sealing principle = soft, exhaust function = not drosselbar, hand auxiliary lever = latching
This text is machine translated.
This text is machine translated.
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
