Buy FESTO Pivot lever valve RW/O-3-1/8 4937 -0.95 up to 8 bar 1 pc(s)

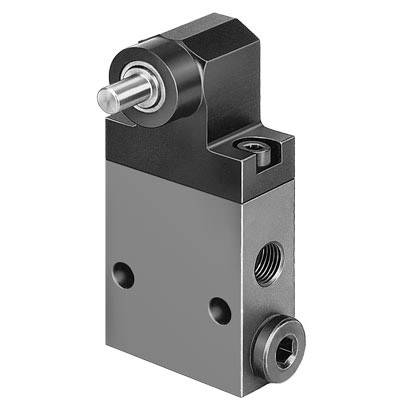

A square, black mechanical engineering component made of metal with a cylindrical pin on top and multiple holes, potentially part of a mechanical system.

Image similar

Datasheet (PDF)

Fast track dispatch on Tue, 6 Oct

2 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 176.46 / piece)

€ 176.46

plus VAT.

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Technical specifications

Valve function: 3/2 open/closed mono-stable
Nominal width: 3.5 mm
Operating method: mechanical
Ambient temperature: -10 °C to +60 °C
Product weight: 150 g
Material Seals: NBR
Actuating force 28 N
Normal nominal flow rate: 140 l/min

Operating medium: According to ISO 8573-1:2010 [compressed air -:-:-]

Product type: Pivot lever valve

Min. display range: -0.95 bar

Display range (max.): 8 bar

Operating temperature: -10 °C (min)

Min. operating temperature: -10 °C

Manufacturer part #: 4937

Material (details): Casing: anodised aluminium

Dim: (Ø) 3.5 mm

Connection: G1/8

Max. operating pressure: 8 bar

Operating pressure (min.): -0.95 bar

Pressure range: -0.95 up to 8 bar

Operating medium: Compressed air

(Ø): 3.5 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2115163 FESTO Pivot lever valve RW/O-3-1/8 4937 -0.95 up to 8 bar 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2115163 FESTO Pivot lever valve RW/O-3-1/8 4937 -0.95 up to 8 bar 1 pc(s)

Information

Information 2115163 FESTO Pivot lever valve RW/O-3-1/8 4937 -0.95 up to 8 bar 1 pc(s)

Description

Swivel lever valve RW/O-3-1/8 depending on the choice of connections the function not pressed continuity or no continuity. Valve function = 3/2 open/closed, mono-stable, operating method = mechanically, normal rated flow = 140 l/min, Operating pressure = -0,95 - 8 bar, constructive design = piston seat

This text is machine translated.
