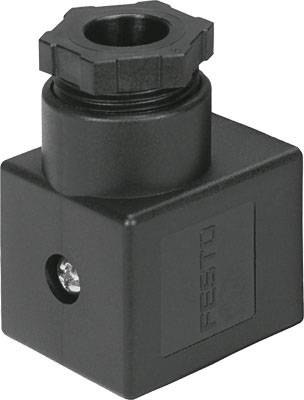

FESTO Plug 539709 MSSD-C-M16 Number of pins: 3 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 4.03 / piece)
€ 4.03
plus VAT.
14-day return policy included
Highlights & Details
MSSD-C-M16
Technical specifications
- Mounting type: on solenoid valve with central screw M3
- Product type
Plug
- Manufacturer part #
539709
- Weight
38 g
- Number of pins
3
- Number of contacts (details)
3-polig
IP65
- Max. ambient temperature
+115 °C
- Min. ambient temperature
-20 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2118930 FESTO Plug 539709 MSSD-C-M16 Number of pins: 3 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2118930 FESTO Plug 539709 MSSD-C-M16 Number of pins: 3 1 pc(s)
Information
Information 2118930 FESTO Plug 539709 MSSD-C-M16 Number of pins: 3 1 pc(s)
Description
Socket MSSD-C-M16 for solenoids and valves, Connection Diagram according to DIN EN 175 301, Type A. Connection frequency = 50, type = on solenoid valve with central screw M3, mounting position=any, product weight = 38g, electrical connection = (* SOCKET ANGLED T, * square design, * according to DIN EN 175301-803, * Connection Image Form A to EN 175301-803, * 3-pin)
This text is machine translated.
This text is machine translated.
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
