FESTO Pneumatic valve VL/O-3-1/8-B 7803 -0.95 up to 10 bar 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 113.44 / piece)
€ 113.44
plus VAT.
Only 4 Piece(s) available
Highlights & Details

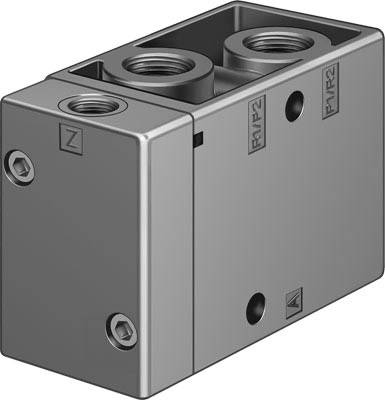

Pneumatic valve VL/O-3-1/8-B
Technical specifications
- Valve function: 3/2 open/closed mono-stable
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Pneumatic valve
- Min. display range
-0.95 bar
- Display range (max.)
10 bar
- Type
Weight: 150 g
- Operating temperature
-10 up to 60 °C
- Min. operating temperature
-10 °C
- Max. operating temperature
60 °C
- Manufacturer part #
7803
- Material (details)
Diecast aluminium
- Max. operating pressure
10 bar
- Operating pressure (min.)
-0.95 bar
- Pressure range
-0.95 up to 10 bar
- Operating medium
Compressed air
- Width
5 mm
- UKCA
not relevant
