FESTO Pressure regulator 159624 LR-1/8-D-MINI Enclosure material Zinc (die-cast) Sealant NBR 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 70.58 / piece)
€ 70.58
plus VAT.
Only 6 Piece(s) available
Highlights & Details

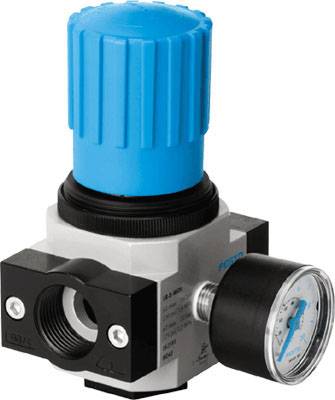

Pressure regulator LR-1/8-D-MINI
Technical specifications
- Directly actuated diaphragm control valve
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4],, inert gases
- Product type
Pressure regulator
- Enclosure material
Zinc (die-cast)
- Connection
G 1/8
- Max. flow
800 l/min
- Max. operating pressure
16 bar
- Type
Pressure Control Valve LR-1/8-D-MINI with pressure gauge, working pressure up to 12 bar. Size = Mini, Series= D, actuating protection = rotary knob with locking, mounting position=any, constructive design = directly actuated diaphragm control valve
- Manufacturer part #
159624
- Size
Mini
- Operating pressure (min.)
1 bar
- Sealant
NBR
- Weight
350 g
- Media temperature (range)
-10 up to +60 °C
- Max. media temperature
+60 °C
- Media temperature (min.)
-10 °C
- Medium
Compressed air
- Features
Sleeve
- Control pressure (max.)
12 bar
- Control pressure (min.)
0.5 bar
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-10 °C
- Operating principle
Direct action
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1937116 FESTO Pressure regulator 159624 LR-1/8-D-MINI Enclosure material Zinc (die-cast) Sealant NBR 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1937116 FESTO Pressure regulator 159624 LR-1/8-D-MINI Enclosure material Zinc (die-cast) Sealant NBR 1 pc(s)
Description
• With screw-in thread and plug-in connection
• Screw-in thread M5, RX, R¼
• Plug connection for hose outside diameter 4... 8 mm
• Plug connection 360°
The pressure regulating valve keeps the output pressure on the secondary side independent of pressure fluctuations on the primary side and from the air consumption largely constant.
The screw-in thread adjacent primary pressure shall enter into force on the QSSteckanschluss reduced.
This text is machine translated.
• Screw-in thread M5, RX, R¼
• Plug connection for hose outside diameter 4... 8 mm
• Plug connection 360°
The pressure regulating valve keeps the output pressure on the secondary side independent of pressure fluctuations on the primary side and from the air consumption largely constant.
The screw-in thread adjacent primary pressure shall enter into force on the QSSteckanschluss reduced.
This text is machine translated.
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
