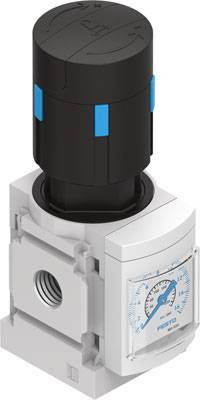

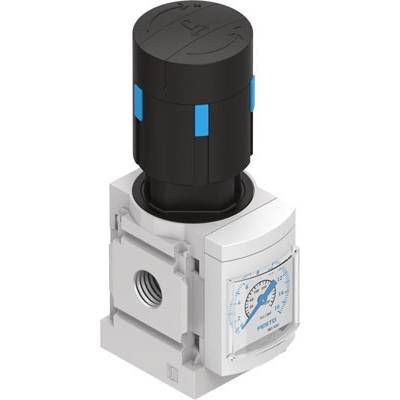

FESTO Pressure regulator 529425 MS4-LR-1/8-D7-AS Enclosure material Aluminium (die-cast) Sealant NBR 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 48.73 / piece)
€ 48.73
plus VAT.
14-day return policy included
Highlights & Details
Pressure regulator MS4-LR-1/8-D7-AS
Technical specifications
- Directly actuated diaphragm control valve
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4],, inert gases
- Product type
Pressure regulator
- Enclosure material
Aluminium (die-cast)
- Connection
G 1/8
- Max. flow
1000 l/min
- Max. operating pressure
14 bar
- Type
Pressure control valve MS4-LR-1/8-D7-AS maximum output pressure 12 bar, with pressure gauge, lockable control head, flow direction from left to right. Size=4, series = MS, actuating protection = (* rotary knob with locking, * with accessories closable), mounting position=any, constructive design = directly actuated diaphragm control valve
- Manufacturer part #
529425
- Size
4
- Operating pressure (min.)
0.8 bar
- Sealant
NBR
- Weight
225 g
- Media temperature (range)
-10 up to +60 °C
- Max. media temperature
+60 °C
- Media temperature (min.)
-10 °C
- Medium
Compressed air
- Control pressure (max.)
12 bar
- Control pressure (min.)
0.5 bar
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-10 °C
- Operating principle
Direct action
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1937297 FESTO Pressure regulator 529425 MS4-LR-1/8-D7-AS Enclosure material Aluminium (die-cast) Sealant NBR 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1937297 FESTO Pressure regulator 529425 MS4-LR-1/8-D7-AS Enclosure material Aluminium (die-cast) Sealant NBR 1 pc(s)
Description
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
