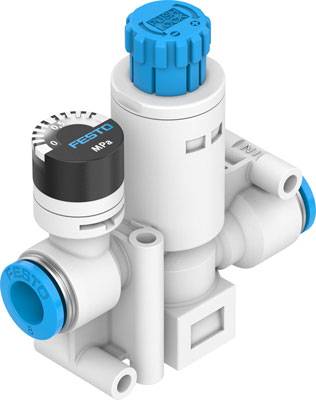

FESTO Pressure regulator 8086004 VRPA-CM-Q6-E QS-6 Enclosure material PBT Sealant NBR 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 63.86 / piece)
€ 63.86
plus VAT.
14-day return policy included
Technical specifications
- Product type
Pressure regulator
- Enclosure material
PBT
- Connection
QS-6
- Max. operating pressure
8 bar
- Operating temperature
0 °C (min)
- Min. operating temperature
0 °C
- Manufacturer part #
8086004
- Operating pressure (min.)
1 bar
- Sealant
NBR
- Weight
23 g
- Medium
ISO 8573-1:2010 [1:4:1] compliance
- QNn value
90 l/min
- Max. ambient temperature
+60 °C
- Min. ambient temperature
0 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2801921 FESTO Pressure regulator 8086004 VRPA-CM-Q6-E QS-6 Enclosure material PBT Sealant NBR 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2801921 FESTO Pressure regulator 8086004 VRPA-CM-Q6-E QS-6 Enclosure material PBT Sealant NBR 1 pc(s)
Description
Pressure regulator VRPA-CM-Q6-E Regulator function=(* Output pressure constant, * with secondary ventilation, * with reverse current behavior), Pneumatic connection 1=QS-6, Pneumatic connection 2=QS-6, Mounting type=with through hole, normal nominal flow=90 l/min.
This text is machine translated.
This text is machine translated.
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
