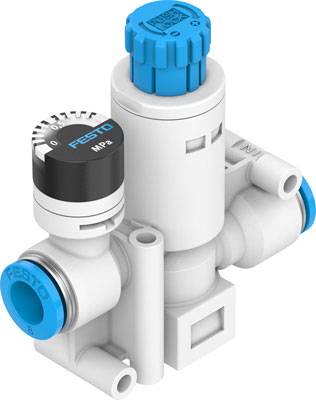

FESTO Pressure regulator 8086005 VRPA-CM-Q8-E QS-8 Enclosure material PBT Sealant NBR 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 70.58 / piece)
€ 70.58
plus VAT.
Only 9 Piece(s) available
Technical specifications
- Type
8086005
- Product type
Pressure regulator
- Enclosure material
PBT
- Connection
QS-8
- Max. operating pressure
8 bar
- Operating temperature
0 °C (min)
- Min. operating temperature
0 °C
- Manufacturer part #
8086005
- Operating pressure (min.)
1 bar
- Sealant
NBR
- Weight
36 g
- Medium
Compressed air
- QNn value
125 l/min
- Max. ambient temperature
+60 °C
- Min. ambient temperature
0 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2801922 FESTO Pressure regulator 8086005 VRPA-CM-Q8-E QS-8 Enclosure material PBT Sealant NBR 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2801922 FESTO Pressure regulator 8086005 VRPA-CM-Q8-E QS-8 Enclosure material PBT Sealant NBR 1 pc(s)
Description
Pressure regulator VRPA-CM-Q8-E Regulator function=(* Output pressure constant, * with secondary ventilation, * with reverse current behavior), Pneumatic connection 1=QS-8, Pneumatic connection 2=QS-8, Mounting type=with through hole, normal nominal flow=125 l/min.
This text is machine translated.
This text is machine translated.
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
