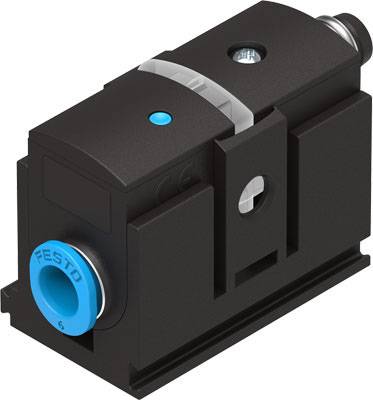

FESTO Pressure sensor 1 pc(s) SDE5-D10-O-Q6-P-M8 Single
EAN:
Part number:
Item no:
Packaging type
Single
Product type
Pressure sensor
Model
Relative pressure
Max. operating voltage
30 V DC
Type
SDE5-D10-O-Q6-P-M8
Datasheet (PDF)
Number
Total (€ 92.43 / piece)
€ 92.43
plus VAT.
14-day return policy included
Highlights & Details
Pressure sensor SDE5-D 10-O-Q6-P-M8
Technical specifications
- Product weight: 19 g
- Max. output current 100 mA
- Electrical connection: Plug, round design, M8 x 1, 3-pin
- Mounting type: with accessories
- Corrosion resistance class KBK: 2-moderate corrosion stress
- Packaging type
Single
- Product type
Pressure sensor
- Type
SDE5-D10-O-Q6-P-M8
- Model
Relative pressure
- Type
Round
- Outputs
PNP
- Output signal (max.)
100 mA
- Min. operating voltage
15 V DC
- Max. operating voltage
30 V DC
- Operating voltage
15 - 30 V DC
- Operating current
100 mA
IP40
- Min. temperature
0 °C
- Max. temperature
+50 °C
- Weight
19 g
- Content
1 pc(s)
- Enclosure material
PA
POM
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1937365 FESTO Pressure sensor 1 pc(s) SDE5-D10-O-Q6-P-M8 Single
User & Safety Instructions
User & Safety Instructions 1937365 FESTO Pressure sensor 1 pc(s) SDE5-D10-O-Q6-P-M8 Single
Description
Pressure sensor SDE5-D 10-O-Q6-P-M8 with plug type M8. Approval = (* RCM mark, * C UL US recognized (oil)), CE mark (see declaration of conformity) = after EU EMC Directive, material note = RoHS compliant, measurement size = relative pressure, measuring method = piezoresistive pressure sensor
