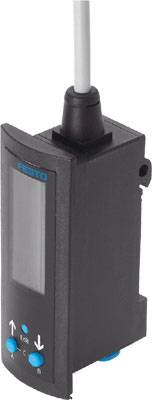

FESTO Pressure sensor Inductive SDE3-D2Z-B-FQ4-2P-M8 540206 M8 2x PNP
EAN:
Part number:
Item no:
Product type
Pressure sensor
Max. operating voltage
30 V DC
Outputs
2x PNP
Model
Inductive
Type
SDE3-D2Z-B-FQ4-2P-M8
Datasheet (PDF)
Number
Total (€ 214.29 / piece)
€ 214.29
plus VAT.
14-day return policy included
Highlights & Details
Pressure sensor SDE3-D2 Z-B-FQ 4-2 P-M8
Technical specifications
- Weight: 61 g
- Max. output current 100 mA
- Electrical connection: cable with plug, round design, M8 x 1, 4-pin
- Mounting type: Front Panel
- Corrosion resistance class KBK: 2-moderate corrosion stress
- Product type
Pressure sensor
- Type
SDE3-D2Z-B-FQ4-2P-M8
- Min. operating voltage
15 V DC
- Max. operating voltage
30 V DC
- Operating voltage
15 - 30 V DC
- Outputs
2x PNP
- Enclosure material
PC
PA
- Model
Inductive
- Size
M8
- Cable length
30.00 cm
- Min. temperature
0 °C
- Max. temperature
+50 °C
IP65
- Content
1 pc(s)
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1937381 FESTO Pressure sensor Inductive SDE3-D2Z-B-FQ4-2P-M8 540206 M8 2x PNP
User & Safety Instructions
User & Safety Instructions 1937381 FESTO Pressure sensor Inductive SDE3-D2Z-B-FQ4-2P-M8 540206 M8 2x PNP
Description
Pressure sensor SDE3-D2 Z-B-FQ 4-2 P-M8 with plug type M8. Approval = RCM mark, CE mark (see declaration of conformity) = after EU EMC Directive, material note = (* copper and PTFE-free, * RoHS compliant), measurement size = differential pressure, measuring method = piezoresistive pressure sensor with display
