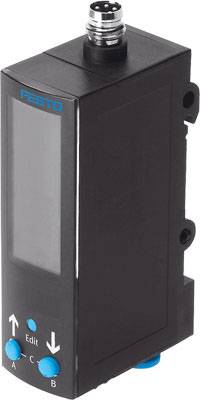

FESTO Pressure sensor Inductive SDE3-D6M-B-HQ4-2P-M12 568668 M12 2x PNP
EAN:
Part number:
Item no:
Product type
Pressure sensor
Max. operating voltage
30 V DC
Contact type
1 PNP
Outputs
2x PNP
Model
Inductive
Datasheet (PDF)
Number
Total (€ 201.67 / piece)
€ 201.67
plus VAT.
14-day return policy included
Highlights & Details
Pressure sensor SDE3-D6 M-B-HQ 4-2 P-M12
Technical specifications
- Weight: 37 g
- Max. output current 100 mA
- Electrical connection: Plug, round design, M12 x 1, 5-pin
- Mounting type: With Through Hole, with top-hat rail
- Corrosion resistance class KBK: 2-moderate corrosion stress
- Product type
Pressure sensor
- Type
SDE3-D6M-B-HQ4-2P-M12
- Min. operating voltage
15 V DC
- Max. operating voltage
30 V DC
- Operating voltage
15 - 30 V DC
- Contact type
1 PNP
- Outputs
2x PNP
- Enclosure material
PC
PA
- Model
Inductive
- Size
M12
- Min. temperature
0 °C
- Max. temperature
+50 °C
IP65
- Content
1 pc(s)
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1937427 FESTO Pressure sensor Inductive SDE3-D6M-B-HQ4-2P-M12 568668 M12 2x PNP
User & Safety Instructions
User & Safety Instructions 1937427 FESTO Pressure sensor Inductive SDE3-D6M-B-HQ4-2P-M12 568668 M12 2x PNP
Description
Pressure sensor SDE3-D6 M-B-HQ 4-2 P-M12 approval = (* RCM mark, * C UL US recognized (oil)), CE mark (see declaration of conformity) = after EU EMC Directive, material note = (* copper and PTFE-free, * RoHS compliant), measuring size = 1 x relative pressure/1x differential pressure, measuring method = piezoresistive pressure sensor with display
