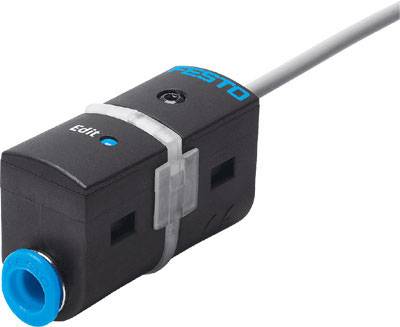

FESTO Pressure sensor Inductive SDE5-D10-NF-Q6E-V-K 567471
EAN:
Part number:
Item no:
Product type
Pressure sensor
Max. operating voltage
30 V DC
Model
Inductive
Type
SDE5-D10-NF-Q6E-V-K
Min. operating voltage
15 V DC
Datasheet (PDF)
Number
Total (€ 92.43 / piece)
€ 92.43
plus VAT.
14-day return policy included
Highlights & Details
Pressure sensor SDE5-D 10-NF-Q6E-V-K
Technical specifications
- Weight 47 g
- Electrical connection: cable, 3-wire
- Mounting type: with accessories
- Corrosion resistance class KBK: 2-moderate corrosion stress
- Product type
Pressure sensor
- Type
SDE5-D10-NF-Q6E-V-K
- Min. operating voltage
15 V DC
- Max. operating voltage
30 V DC
- Operating voltage
15 - 30 V DC
- Enclosure material
PA
POM
- Model
Inductive
- Cable length
2.50 m
- Min. temperature
0 °C
- Max. temperature
+50 °C
IP40
- Content
1 pc(s)
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1937418 FESTO Pressure sensor Inductive SDE5-D10-NF-Q6E-V-K 567471
User & Safety Instructions
User & Safety Instructions 1937418 FESTO Pressure sensor Inductive SDE5-D10-NF-Q6E-V-K 567471
Description
Pressure sensor SDE5-D 10-NF-Q6E-V-K with cable design. Approval = (* RCM mark, * C UL US recognized (oil)), CE mark (see declaration of conformity) = after EU EMC Directive, material note = RoHS compliant, measurement size = relative pressure, measuring method = piezoresistive pressure sensor
