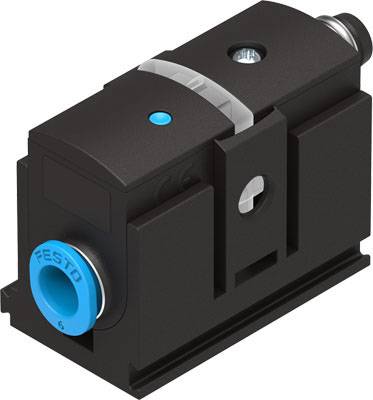

FESTO Pressure sensor Inductive SDE5-D10-O-Q6E-P-M8 527467 PNP
EAN:
Part number:
Item no:
Product type
Pressure sensor
Max. operating voltage
30 V DC
Contact type
1 PNP
Outputs
PNP
Model
Inductive
Datasheet (PDF)
Number
Total (€ 92.43 / piece)
€ 92.43
plus VAT.
Only 4 Piece(s) available
Highlights & Details
Pressure sensor SDE5-D 10-O-Q6E-P-M8
Technical specifications
- Max. Switching frequency: 500 Hz
- Corrosion resistance class KBK: 2-moderate corrosion stress
- Product type
Pressure sensor
- Type
SDE5-D10-O-Q6E-P-M8
- Min. operating voltage
15 V DC
- Max. operating voltage
30 V DC
- Operating voltage
15 - 30 V DC
- Contact type
1 PNP
- Outputs
PNP
- Enclosure material
PA
POM
- Model
Inductive
- Material properties
anti-corrosive
- Connector
M8
- Min. temperature
0 °C
- Max. temperature
+50 °C
IP40
- Content
1 pc(s)
- Switching frequency
500 Hz
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1937367 FESTO Pressure sensor Inductive SDE5-D10-O-Q6E-P-M8 527467 PNP
User & Safety Instructions
User & Safety Instructions 1937367 FESTO Pressure sensor Inductive SDE5-D10-O-Q6E-P-M8 527467 PNP
Description
Pressure sensor SDE5-D 10-O-Q6E-P-M8 with plug type M8. Approval = (* RCM mark, * C UL US recognized (oil)), CE mark (see declaration of conformity) = after EU EMC Directive, material note = RoHS compliant, measurement size = relative pressure, measuring method = piezoresistive pressure sensor
