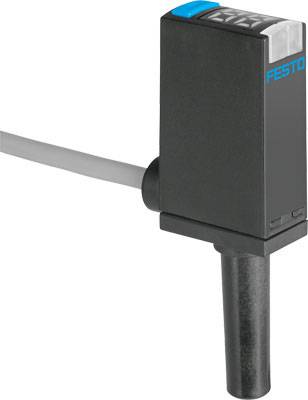

FESTO Pressure sensor Inductive SPAE-P10R-S6-PNLK-2.5K 8001446 PNP, NPN
EAN:
Part number:
Item no:
Product type
Pressure sensor
Max. operating voltage
30 V DC
Outputs
PNP
NPN
Model
Inductive
Type
SPAE-P10R-S6-PNLK-2.5K
Datasheet (PDF)
Number
Total (€ 92.43 / piece)
€ 92.43
plus VAT.
14-day return policy included
Highlights & Details
Pressure sensor SPAE-P10R-S 6-PNLK-2.5 K
Technical specifications
- Weight 40 g
- Max. output current 100 mA
- Electrical connection: cable, open end, 3-wire
- Mounting type: guard
- Corrosion resistance class KBK: 2-moderate corrosion stress
- Product type
Pressure sensor
- Type
SPAE-P10R-S6-PNLK-2.5K
- Min. operating voltage
18 V DC
- Max. operating voltage
30 V DC
- Operating voltage
18 - 30 V DC
- Outputs
PNP
NPN
- Enclosure material
PA
- Model
Inductive
- Cable length
2.50 m
- Min. temperature
0 °C
- Max. temperature
+50 °C
IP40
- Content
1 pc(s)
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1937474 FESTO Pressure sensor Inductive SPAE-P10R-S6-PNLK-2.5K 8001446 PNP, NPN
User & Safety Instructions
User & Safety Instructions 1937474 FESTO Pressure sensor Inductive SPAE-P10R-S6-PNLK-2.5K 8001446 PNP, NPN
Description
Pressure sensor SPAE-P10R-S 6-PNLK-2.5 K approval = (* RCM mark, * C UL US recognized (oil)), CE mark (see declaration of conformity) = after EU EMC Directive, material note = RoHS compliant, measurement size = relative pressure, measuring method = piezoresistive pressure sensor with display
