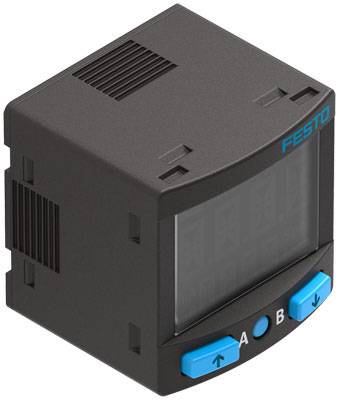

FESTO Pressure sensor Inductive SPAN-B2R-M5F-PN-PN-L1 8035551 2x PNP
EAN:
Part number:
Item no:
Product type
Pressure sensor
Max. operating voltage
30 V DC
Contact type
1 PNP
Outputs
2x PNP
Model
Inductive
Datasheet (PDF)
Number
Total (€ 113.44 / piece)
€ 113.44
plus VAT.
14-day return policy included
Highlights & Details
Pressure sensor chip-B2R-M 5F-PN-PN-L1
Technical specifications
- Weight 34 g
- Max. output current 100 mA
- Electrical connection: Plug, square design, 4-pin
- Mounting type: front panel, with wall/Surface Mount
- Corrosion resistance class KBK: 2-moderate corrosion stress
- Product type
Pressure sensor
- Type
SPAN-B2R-M5F-PN-PN-L1
- Min. operating voltage
15 V DC
- Max. operating voltage
30 V DC
- Operating voltage
15 - 30 V DC
- Contact type
1 PNP
- Outputs
2x PNP
- Enclosure material
PA
- Model
Inductive
- Min. temperature
0 °C
- Max. temperature
+50 °C
IP40
- Content
1 pc(s)
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4],, inert gases
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1937614 FESTO Pressure sensor Inductive SPAN-B2R-M5F-PN-PN-L1 8035551 2x PNP
User & Safety Instructions
User & Safety Instructions 1937614 FESTO Pressure sensor Inductive SPAN-B2R-M5F-PN-PN-L1 8035551 2x PNP
Description
Pressure sensor chip-B2R-M 5F-PN-PN-L1 approval = (* RCM mark, * C UL US LISTED (oil)), CE mark (see declaration of conformity) = after EU EMC Directive, Certificate issuing point = UL E 322346, material note = RoHS compliant, measurement size = relative pressure
