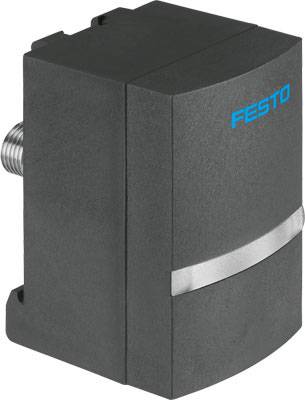

FESTO Pressure sensor Inductive SPAU-P10R-T-G18M-LK-A-M12D 8003346 2x PNP
EAN:
Part number:
Item no:
Product type
Pressure sensor
Max. operating voltage
30 V DC
Contact type
1 PNP
Outputs
2x PNP
Model
Inductive
Datasheet (PDF)
Number
Total (€ 134.45 / piece)
€ 134.45
plus VAT.
14-day return policy included
Highlights & Details
Pressure sensor SPAU-P10R-T-G18M-LK-A-M12D
Technical specifications
- Weight 80 g
- Max. output current 100 mA
- Electrical connection: Plug, round design, M12 x 1, 4-pin
- Rise time: 3 ms
- Mounting type: with thread
- Corrosion resistance class KBK: 2-moderate corrosion stress
- Product type
Pressure sensor
- Type
SPAU-P10R-T-G18M-LK-A-M12D
- Min. operating voltage
20 V DC
- Max. operating voltage
30 V DC
- Operating voltage
20 - 30 V DC
- Contact type
1 PNP
- Outputs
2x PNP
- Model
Inductive
- Material properties
anti-corrosive
- Min. temperature
0 °C
- Max. temperature
+50 °C
IP65
IP67
- Content
1 pc(s)
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4],, inert gases
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1937479 FESTO Pressure sensor Inductive SPAU-P10R-T-G18M-LK-A-M12D 8003346 2x PNP
User & Safety Instructions
User & Safety Instructions 1937479 FESTO Pressure sensor Inductive SPAU-P10R-T-G18M-LK-A-M12D 8003346 2x PNP
Description
Pressure sensor SPAU-P10R-T-G18M-LK-A-M12D for monitoring of compressed air and non-corrosive gases, the fixing is done by means of threaded mounting, without display. Approval = (* RCM mark, * C UL US LISTED (oil)), CE mark (see declaration of conformity) = (* to EU EMC Directive, * according to EU RoHS-RL), material note = RoHS compliant, measurement size = relative pressure, measuring method = piezoresistive pressure sensor
