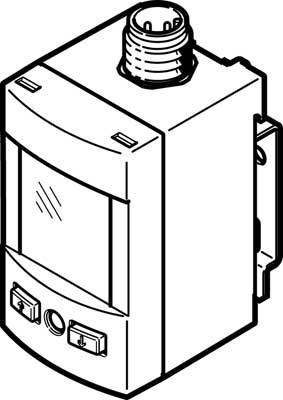

FESTO Pressure sensor Inductive SPAU-V1R-W-Q4D-L-PNLK-PNVBA-M12D 8001238 M12 2x PNP
EAN:
Part number:
Item no:
Product type
Pressure sensor
Max. operating voltage
30 V DC
Contact type
1 PNP
Outputs
2x PNP
Model
Inductive
Datasheet (PDF)
Number
Total (€ 151.25 / piece)
€ 151.25
plus VAT.
14-day return policy included
Highlights & Details
Pressure sensor SPAU-V1 R-W-Q4D-L-PNLK-PNVBA-M12D
Technical specifications
- Weight 65 g
- Max. output current 100 mA
- Electrical connection: Plug, round design, M12 x 1, 4-pin
- Rise time: 3 ms
- Mounting type: with wall/Surface Mount
- Corrosion resistance class KBK: 2-moderate corrosion stress
- Product type
Pressure sensor
- Type
SPAU-V1R-W-Q4D-L-PNLK-PNVBA-M12D
- Min. operating voltage
20 V DC
- Max. operating voltage
30 V DC
- Operating voltage
20 - 30 V DC
- Contact type
1 PNP
- Outputs
2x PNP
- Model
Inductive
- Size
M12
- Features
LED indicator
- Min. temperature
0 °C
- Max. temperature
+50 °C
IP65
IP67
- Content
1 pc(s)
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4],, inert gases
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1937466 FESTO Pressure sensor Inductive SPAU-V1R-W-Q4D-L-PNLK-PNVBA-M12D 8001238 M12 2x PNP
User & Safety Instructions
User & Safety Instructions 1937466 FESTO Pressure sensor Inductive SPAU-V1R-W-Q4D-L-PNLK-PNVBA-M12D 8001238 M12 2x PNP
Description
Pressure sensor SPAU-V1 R-W-Q4D-L-PNLK-PNVBA-M12D for monitoring of compressed air and non-corrosive gases, the fixing is done by means of wall mounting, with display. Approval = (* RCM mark, * C UL US LISTED (oil)), CE mark (see declaration of conformity) = (* to EU EMC Directive, * according to EU RoHS-RL), material note = RoHS compliant, measurement size = relative pressure, measuring method = piezoresistive pressure sensor
