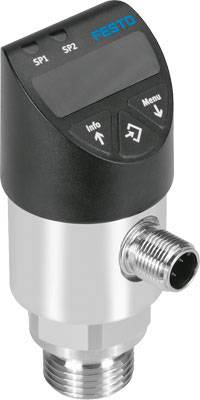

FESTO Pressure sensor Inductive SPAW-P50R-G12M-2NA-M12 8022828 M12 2x NPN
EAN:
Part number:
Item no:
Product type
Pressure sensor
Max. operating voltage
35 V DC
Outputs
2x NPN
Model
Inductive
Type
SPAW-P50R-G12M-2NA-M12
Datasheet (PDF)
Number
Total (€ 323.53 / piece)
€ 323.53
plus VAT.
14-day return policy included
Highlights & Details
Pressure sensor SPAW-P50R-G12 M-2 NA-M12
Technical specifications
- Weight: 230 g
- Max. output current 250 mA
- Electrical connection: Plug, round design, M12 x 1, 5-pin
- Rise time: 3 ms
- Mounting type: with external thread
- Corrosion resistance class KBK: 4 - very strong corrosion stress
- Product type
Pressure sensor
- Type
SPAW-P50R-G12M-2NA-M12
- Min. operating voltage
15 V DC
- Max. operating voltage
35 V DC
- Operating voltage
15 - 35 V DC
- Outputs
2x NPN
- Enclosure material
Acrylonitrile butadiene styrene
Steel
- Model
Inductive
- Size
M12
- Min. temperature
0 °C
- Max. temperature
+80 °C
IP65
IP67
- Content
1 pc(s)
- Operating medium
According to ISO 8573-1:2010 [compressed air -:-:-];; fluid media; gaseous media
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1937574 FESTO Pressure sensor Inductive SPAW-P50R-G12M-2NA-M12 8022828 M12 2x NPN
User & Safety Instructions
User & Safety Instructions 1937574 FESTO Pressure sensor Inductive SPAW-P50R-G12M-2NA-M12 8022828 M12 2x NPN
Description
Pressure sensor SPAW-P50R-G12 M-2 NA-M12 for the measurement of media, pressure measuring range 0 to +50 bar, pneumatic connection external thread G1/2. Approval = (* RCM mark, * C UL US LISTED (oil)), CE mark (see declaration of conformity) = after EU EMC Directive, material note = (* LABS-containing substances, * RoHS compliant), measurement size = relative pressure, measuring method = Metal thin film pressure sensor
