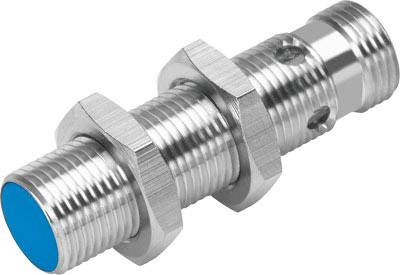

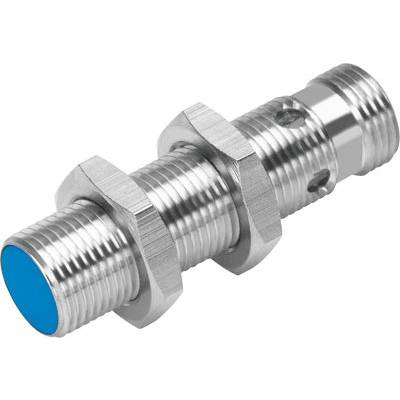

FESTO Proximity sensor Inductive SIEH-M12B-PS-S-L 150451 M12 PNP (Ø) 12 mm
EAN:
Part number:
Item no:
Product type
Proximity sensor
Max. operating voltage
30 V DC
Contact type
1 PNP
Switching distance (max.)
4 mm
Outputs
PNP
Datasheet (PDF)
Number
Total (€ 70.58 / piece)
€ 70.58
plus VAT.
Only 2 Piece(s) available
Highlights & Details
Proximity switch CHECK-M12B-PS-S-L
Technical specifications
- Max. output current 200 mA
- Max. Switching frequency: 2500 Hz
- Product weight: 30g
- Mounting type: With Lock Nut
- Product type
Proximity sensor
- Type
SIEH-M12B-PS-S-L
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Contact type
1 PNP
- Switching distance (max.)
4 mm
- Outputs
PNP
- Enclosure material
PBTP
Brass
- Model
Inductive
- Size
M12
- Connector
M12
- Min. temperature
-25 °C
- Max. temperature
+70 °C
IP65
IP67
- (Ø)
12 mm
- Dim
(Ø) 12 mm
- Content
1 pc(s)
- Switching frequency
2500 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1895529 FESTO Proximity sensor Inductive SIEH-M12B-PS-S-L 150451 M12 PNP (Ø) 12 mm
User & Safety Instructions
User & Safety Instructions 1895529 FESTO Proximity sensor Inductive SIEH-M12B-PS-S-L 150451 M12 PNP (Ø) 12 mm
Information
Information 1895529 FESTO Proximity sensor Inductive SIEH-M12B-PS-S-L 150451 M12 PNP (Ø) 12 mm
Description
Proximity switch CHECK-M12B-PS-S-L inductive, for large switching distance. Meets standard EN 60947-5-2, approval = (* C-Tick, *C UL US LISTED (oil)), CE mark (see declaration of conformity) = after EU EMC Directive, material note = copper and PTFE-free, rated switching distance = 4 mm
