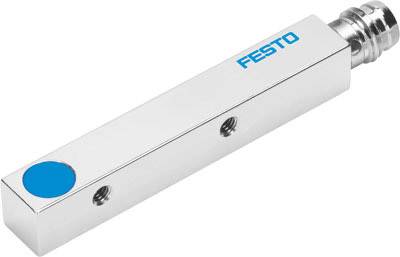

FESTO Proximity sensor Inductive SIES-Q8B-NS-S-L 178293 8 x 8 x 59 mm shielded NPN (L x W x H) 59 x 8 x 8 mm
EAN:
Part number:
Item no:
Product type
Proximity sensor
Max. operating voltage
30 V DC
Switching distance (max.)
1.5 mm
Outputs
NPN
Model
Inductive
Datasheet (PDF)
Number
Total (€ 78.98 / piece)
€ 78.98
plus VAT.
14-day return policy included
Highlights & Details
Technical specifications
- Product weight: 12g
- Max. output current 200 mA
- Mounting type: with internal thread
- Product type
Proximity sensor
- Type
SIES-Q8B-NS-S-L
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Switching distance (max.)
1.5 mm
- Outputs
NPN
- Enclosure material
Zinc (die-cast)
- Model
Inductive
- Installation type
shielded
- Size
8 x 8 x 59 mm
- Connector
Plug
- Min. temperature
-25 °C
- Max. temperature
+70 °C
IP67
- Length
59 mm
- Width
8 mm
- Height
8 mm
- Dim
(L x W x H) 59 x 8 x 8 mm
- Content
1 pc(s)
- Material (details)
Chrome-plated, nickel, zinc die-cast
- Switching frequency
3500 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2116528 FESTO Proximity sensor Inductive SIES-Q8B-NS-S-L 178293 8 x 8 x 59 mm shielded NPN (L x W x H) 59 x 8 x 8 mm
User & Safety Instructions
User & Safety Instructions 2116528 FESTO Proximity sensor Inductive SIES-Q8B-NS-S-L 178293 8 x 8 x 59 mm shielded NPN (L x W x H) 59 x 8 x 8 mm
Information
Information 2116528 FESTO Proximity sensor Inductive SIES-Q8B-NS-S-L 178293 8 x 8 x 59 mm shielded NPN (L x W x H) 59 x 8 x 8 mm
Description
Proximity switch your-Q8B-NS-S-L induction, with connector, flush mountable, no function, the negative potential is switched. Meets standard EN 60947-5-2, approval = (* RCM mark, * C UL US LISTED (oil)), CE mark (see declaration of conformity) = after EU EMC Directive, material note = (* copper and PTFE-free, * RoHS compliant), rated switching distance = 1.5 mm
