FESTO Proximity sensor Inductive SME-10M-DS-24V-E-0,3-L-M8D 551367 round groove
EAN:
Part number:
Item no:
Product type
Proximity sensor
Max. operating voltage
30 V AC
Model
Inductive
Connector
M8
Type
SME-10M-DS-24V-E-0,3-L-M8D
Datasheet (PDF)
Number
Total (€ 40.33 / piece)
€ 40.33
plus VAT.
14-day return policy included
Highlights & Details

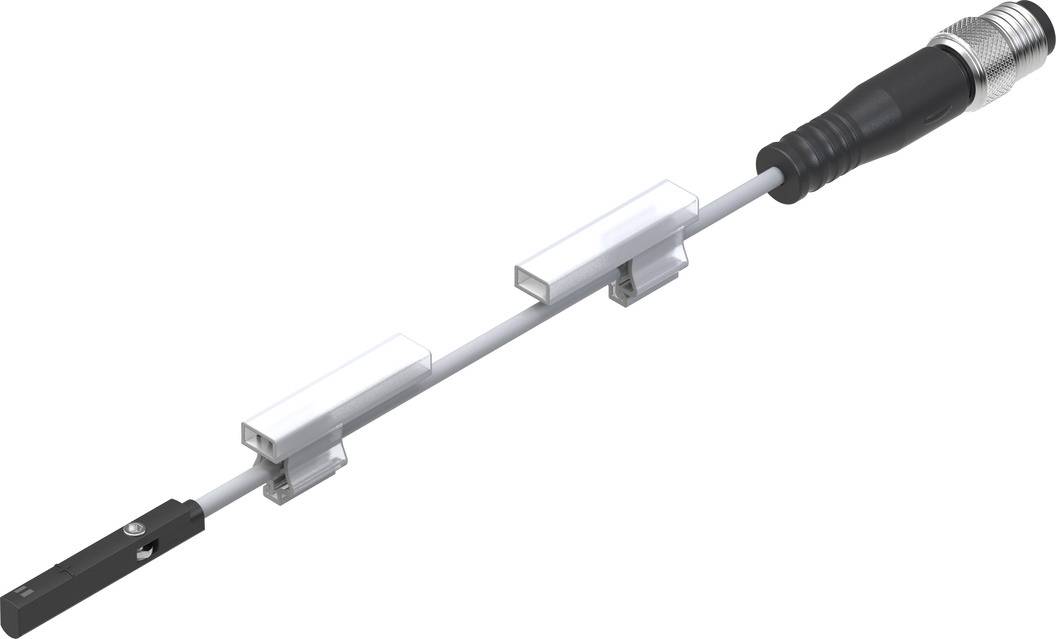

Proximity switch SME-10M-DS-24 V-E -0.3-L-M 8D
Technical specifications
- Proximity switch suitable for rounded groove
- Design: for rounded groove
- Weight: 6.7 g
- Max. output current 300 mA
- Mounting type: screwed
- Max. circuit breaking capacity 9 W
- Product type
Proximity sensor
- Type
SME-10M-DS-24V-E-0,3-L-M8D
- Min. operating voltage
5 V AC
- Max. operating voltage
30 V AC
- Operating voltage
5 - 30 V AC
- Enclosure material
Steel
PA
- Model
Inductive
- Installation type
round groove
- Connector
M8
- Cable length
30.00 cm
- Features
oil-resistant
- Min. temperature
-40 °C
- Max. temperature
+70 °C
IP65
IP68
- Content
1 pc(s)
- Type
Protection class IP65/IP68
- Switching frequency
50 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1943944 FESTO Proximity sensor Inductive SME-10M-DS-24V-E-0,3-L-M8D 551367 round groove
User & Safety Instructions
User & Safety Instructions 1943944 FESTO Proximity sensor Inductive SME-10M-DS-24V-E-0,3-L-M8D 551367 round groove
Description
Proximity switch SME-10M-DS-24 V-E -0.3-L-M 8D suitable for rounded groove. Design, according to standard EN 60947-5-2 = for rounded groove, approval=C-Tick, CE mark (see declaration of conformity) = after EU EMC Directive, special properties = oil-resistant
