FESTO Proximity sensor Inductive SME-8-K-LED-24 150855 T groove
EAN:
Part number:
Item no:
Product type
Proximity sensor
Max. operating voltage
30 V AC
Model
Inductive
Connector
Cable
Type
SME-8-K-LED-24
Datasheet (PDF)
Number
Total (€ 53.77 / piece)
€ 53.77
plus VAT.
Only 5 Piece(s) available
Highlights & Details
Proximity switch SME-8-K-LED-24
Technical specifications
- Max. output current 500 mA
- Max. Switching frequency: 800 Hz
- Product weight: 30g
- Mounting type: clamped in the T-slot
- Max. switching capacity of 10 W
- Product type
Proximity sensor
- Type
SME-8-K-LED-24
- Min. operating voltage
12 V AC
- Max. operating voltage
30 V AC
- Operating voltage
12 - 30 V AC
- Enclosure material
PC
PET
Steel
Epoxy resin
- Model
Inductive
- Installation type
T groove
- Connector
Cable
- Cable length
2.50 m
- Features
LED indicator
- Min. temperature
-40 °C
- Max. temperature
+60 °C
IP65
IP67
- Content
1 pc(s)
- Switching frequency
800 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1894573 FESTO Proximity sensor Inductive SME-8-K-LED-24 150855 T groove
User & Safety Instructions
User & Safety Instructions 1894573 FESTO Proximity sensor Inductive SME-8-K-LED-24 150855 T groove
Information
Information 1894573 FESTO Proximity sensor Inductive SME-8-K-LED-24 150855 T groove
Description

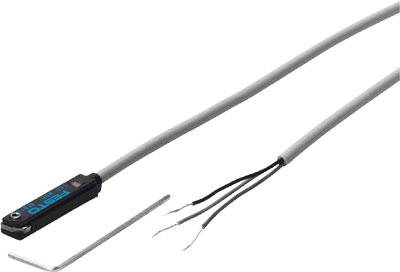

Proximity switch SME-8-K-LED-24 electric, with reed contact, for drives with T-slot, with cable. Design = for T-slot, according to standard EN 60947-5-2, approval = RCM mark, CE mark (see declaration of conformity) = after EU EMC Directive, material note = (* copper and PTFE-free, * RoHS compliant)
