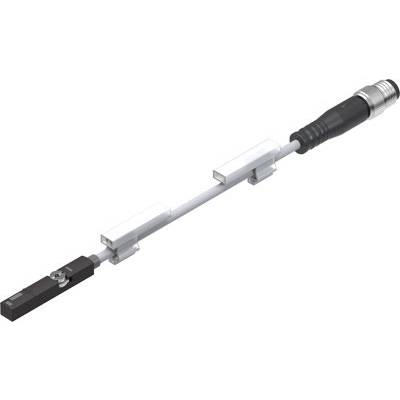

FESTO Proximity sensor Inductive SME-8M-DS-24V-K-0,3-M8D 543861 M8 T groove
EAN:
Part number:
Item no:
Product type
Proximity sensor
Max. operating voltage
30 V AC
Model
Inductive
Connector
M8
Type
SME-8M-DS-24V-K-0,3-M8D
Datasheet (PDF)
Number
Total (€ 35.29 / piece)
€ 35.29
plus VAT.
14-day return policy included
Highlights & Details
Proximity switch SME-8M-DS-24 V-K-0.3-M 8D
Technical specifications
- Product weight: 8.9 g
- Cable length: 0.3 m
- Max. switching capacity of 10 W
- Max. output current 500 mA
- Mounting type: screwed
- Product type
Proximity sensor
- Type
SME-8M-DS-24V-K-0,3-M8D
- Min. operating voltage
5 V AC
- Max. operating voltage
30 V AC
- Operating voltage
5 - 30 V AC
- Enclosure material
PA
Steel
Brass
TPE-U(PU)
- Model
Inductive
- Installation type
T groove
- Size
M8
- Connector
M8
- Cable length
30.00 cm
- Features
oil-resistant
- Min. temperature
-40 °C
- Max. temperature
+70 °C
IP65
IP68
- Content
1 pc(s)
- Type
Switching element function: closer
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1893609 FESTO Proximity sensor Inductive SME-8M-DS-24V-K-0,3-M8D 543861 M8 T groove
User & Safety Instructions
User & Safety Instructions 1893609 FESTO Proximity sensor Inductive SME-8M-DS-24V-K-0,3-M8D 543861 M8 T groove
Description
Proximity switch SME-8M-DS-24 V-K-0.3-M 8D electric, with reed contact, for drives with T-slot, assembly from above, with M8 plug. Approval = (* RCM mark, * C UL US LISTED (oil)), CE mark (see declaration of conformity) = after EU EMC Directive, special properties = oil-resistant, material note = (* copper and PTFE-free, * RoHS compliant), measuring principle = Magnetic Reed
