FESTO Proximity sensor Inductive SMT-10M-PS-24V-E-2,5-L-OE 551373 round groove PNP
EAN:
Part number:
Item no:
Product type
Proximity sensor
Max. operating voltage
30 V DC
Outputs
PNP
Model
Inductive
Type
SMT-10M-PS-24V-E-2,5-L-OE
Datasheet (PDF)
Number
Total (€ 45.37 / piece)
€ 45.37
plus VAT.
Only 2 Piece(s) available
Highlights & Details

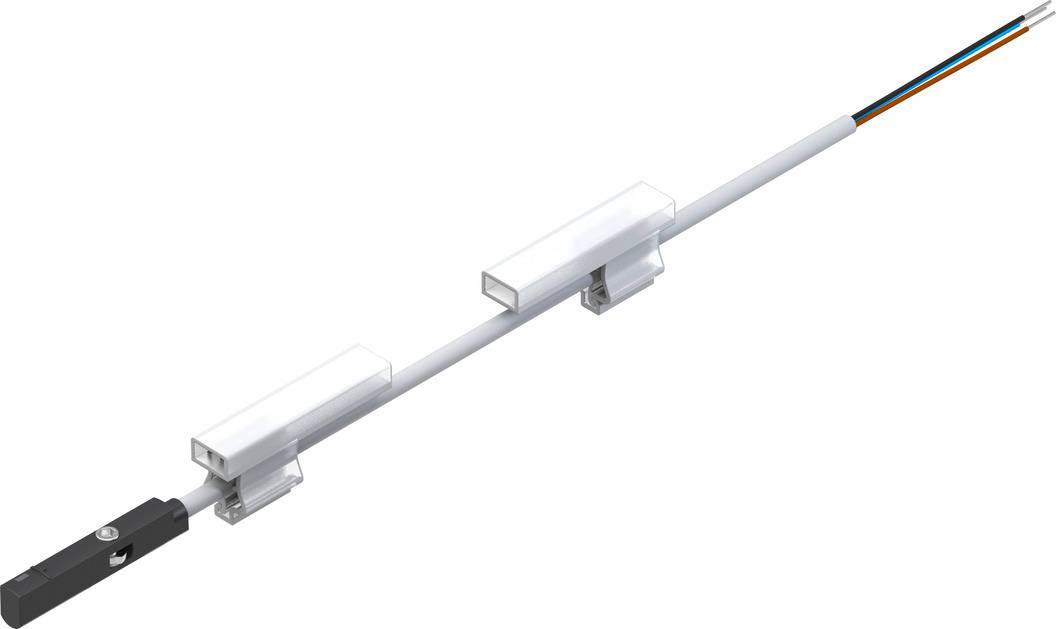

Proximity switch SMT-10M-PS-24V-E-2.5-L-OE
Technical specifications
- Proximity switch magnetic, contact-free, for rounded groove
- Weight: 16.8 g
- Max. output current 100 mA
- Mounting type: screwed
- Max. circuit breaking capacity 2.8 W
- Product type
Proximity sensor
- Type
SMT-10M-PS-24V-E-2,5-L-OE
- Min. operating voltage
5 V DC
- Max. operating voltage
30 V DC
- Operating voltage
5 - 30 V DC
- Outputs
PNP
- Enclosure material
Steel
PA
- Model
Inductive
- Material properties
magnetic
- Installation type
round groove
- Cable length
2.50 m
- Features
oil-resistant
- Min. temperature
-40 °C
- Max. temperature
+70 °C
IP65
IP68
- Content
1 pc(s)
- Type
Protection class IP65/IP68
- Switching frequency
150 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1943946 FESTO Proximity sensor Inductive SMT-10M-PS-24V-E-2,5-L-OE 551373 round groove PNP
User & Safety Instructions
User & Safety Instructions 1943946 FESTO Proximity sensor Inductive SMT-10M-PS-24V-E-2,5-L-OE 551373 round groove PNP
Description
Proximity switch SMT-10M-PS-24V-E-2.5-L-OE magnetically, contact-free, for rounded groove. Design, according to standard EN 60947-5-2 = for rounded groove, approval = RCM mark, CE mark (see declaration of conformity) = after EU EMC Directive, special properties = oil-resistant
