FESTO Proximity sensor Inductive SMT-8M-A-PS-24V-E-0,3-M12 574337 T groove PNP
EAN:
Part number:
Item no:
Product type
Proximity sensor
Max. operating voltage
30 V DC
Contact type
1 PNP
Outputs
PNP
Model
Inductive
Datasheet (PDF)
Number
Total (€ 36.97 / piece)
€ 36.97
plus VAT.
Only 7 Piece(s) available
Highlights & Details

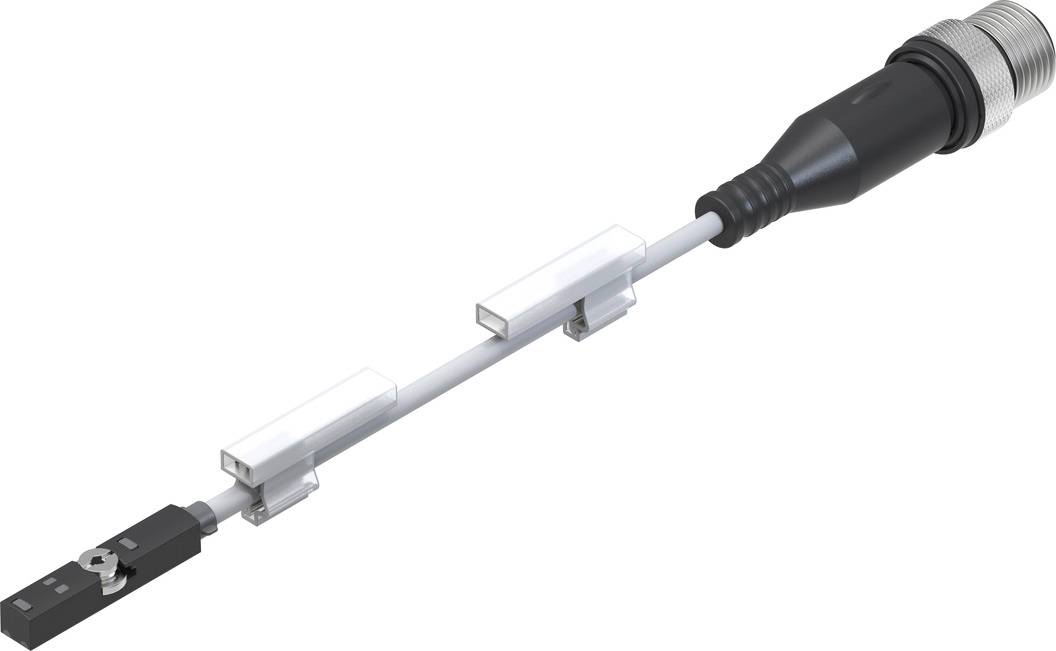

Proximity switch SMT-8M-A-PS-24V-E -0.3 - M12
Technical specifications
- Proximity switch magnetic, contact-free, for the T-slot
- Weight: 15.9 g
- Max. output current 100 mA
- Mounting type: screwed
- Max. circuit breaking capacity 2.8 W
- Product type
Proximity sensor
- Type
SMT-8M-A-PS-24V-E-0,3-M12
- Min. operating voltage
5 V DC
- Max. operating voltage
30 V DC
- Operating voltage
5 - 30 V DC
- Contact type
1 PNP
- Outputs
PNP
- Enclosure material
Steel
PA
Brass
- Model
Inductive
- Installation type
T groove
- Connector
M12
- Cable length
30.00 cm
- Features
oil-resistant
- Min. temperature
-40 °C
- Max. temperature
+85 °C
IP65
IP68
IP69K
- Content
1 pc(s)
- Type
Protection class IP65, IP 68, IP 69K
- Switching frequency
180 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1943954 FESTO Proximity sensor Inductive SMT-8M-A-PS-24V-E-0,3-M12 574337 T groove PNP
User & Safety Instructions
User & Safety Instructions 1943954 FESTO Proximity sensor Inductive SMT-8M-A-PS-24V-E-0,3-M12 574337 T groove PNP
Description
Proximity switch SMT-8M-A-PS-24V-E -0.3 - M12 magnetic, contact-free, for T-groove. Design = for T-slot, based on standard EN 60947-5-2, approval = (* RCM mark, * C UL US LISTED (oil)), CE mark (see declaration of conformity) = after EU EMC Directive, special properties = oil-resistant
