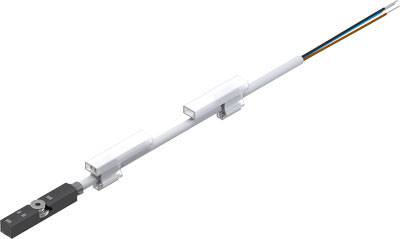

FESTO Proximity sensor Inductive SMT-8M-A-PS-24V-E-2,5-OE 574335 T groove PNP
EAN:
Part number:
Item no:
Product type
Proximity sensor
Max. operating voltage
30 V DC
Contact type
1 PNP
Outputs
PNP
Model
Inductive
Datasheet (PDF)
Number
Total (€ 34.45 / piece)
€ 34.45
plus VAT.
14-day return policy included
Highlights & Details
Proximity switch SMT-8M-A-PS-24V-E-2.5-OE
Technical specifications
- Product Weight: 29.1 g
- Cable length: 2.5 m.
- Max. circuit breaking capacity 2.8 W
- Max. output current 100 mA
- Mounting type: screwed
- Product type
Proximity sensor
- Type
SMT-8M-A-PS-24V-E-2,5-OE
- Min. operating voltage
5 V DC
- Max. operating voltage
30 V DC
- Operating voltage
5 - 30 V DC
- Contact type
1 PNP
- Outputs
PNP
- Enclosure material
Steel
PA
- Model
Inductive
- Installation type
T groove
- Cable length
2.50 m
- Features
oil-resistant
- Min. temperature
-40 °C
- Max. temperature
+85 °C
IP65
IP68
IP69K
- Length
2.5 m
- Content
1 pc(s)
- Type
Switching element function: closer
- Switching frequency
180 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1893637 FESTO Proximity sensor Inductive SMT-8M-A-PS-24V-E-2,5-OE 574335 T groove PNP
User & Safety Instructions
User & Safety Instructions 1893637 FESTO Proximity sensor Inductive SMT-8M-A-PS-24V-E-2,5-OE 574335 T groove PNP
Description
Proximity switch SMT-8M-A-PS-24V-E-2.5-OE magnetically, contact-free, for T-groove. Design = for T-slot, based on standard EN 60947-5-2, approval = (* RCM mark, * C UL US LISTED (oil)), CE mark (see declaration of conformity) = after EU EMC Directive, special properties = oil-resistant
