FESTO QH-1/2 9543 Ball valve Internal thread: 1/2" -0.95 up to 30 bar 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 28.56
3
4% = € 1.24
€ 27.32
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 28.56 / piece)
€ 28.56
plus VAT.
Only 3 Piece(s) available
Highlights & Details

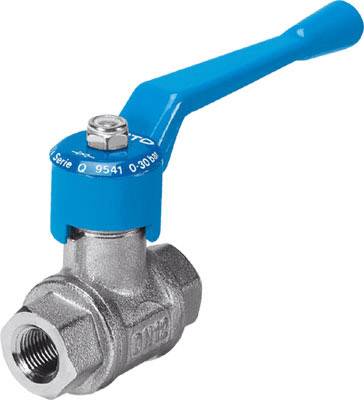

Ball valve QH-1/2
Technical specifications
- Operating medium
Compressed air according to ISO 8573-1:2010 [7:-:-];;water
- Product type
Ball valve
- Internal thread
1/2"
- Internal thread (details)
1/2 inch
- Manufacturer part #
9543
- Material (details)
Brass
- Operating temperature
-20 up to 180 °C
- Min. operating temperature
-20 °C
- Max. operating temperature
180 °C
- Connection
G1/2
- Max. operating pressure
30 bar
- Operating pressure (min.)
-0.95 bar
- Pressure range
-0.95 up to 30 bar
- Operating medium
Compressed air
Water
- Operating temperature (min.)
-20 °C
- Operating temperature range
-20 °C (min)
- Nominal width
15 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1893246 FESTO QH-1/2 9543 Ball valve Internal thread: 1/2" -0.95 up to 30 bar 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1893246 FESTO QH-1/2 9543 Ball valve Internal thread: 1/2" -0.95 up to 30 bar 1 pc(s)
