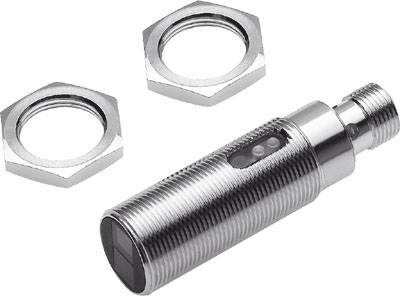

FESTO Receiver unit SOEG-E-M18-NA-S-2L 537711 Receiver 1 pc(s)
EAN:
Part number:
Item no:
Product type
Receiver unit
Max. operating voltage
36 V DC
Connector
M12 plug (4-pin)
Type
SOEG-E-M18-NA-S-2L
Model
Receiver
Datasheet (PDF)
Number
Total (€ 75.62 / piece)
€ 75.62
plus VAT.
14-day return policy included
Highlights & Details
Technical specifications
- Product weight: 40g
- Corrosion resistance class: 1 - Low corrosion stress
- Mounting type: With Lock Nut
- Voltage drop: 2 V
- Output current: 200 mA
- Product type
Receiver unit
- Type
SOEG-E-M18-NA-S-2L
- Model
Receiver
- Operating voltage
36 V DC
- Min. operating voltage
10 V DC
- Max. operating voltage
36 V DC
- Operating voltage
10 - 36 V DC
- Switching frequency
1000 Hz
- Connector
M12 plug (4-pin)
- Size
M18 x 1
- Enclosure material
Brass
20000 mm
IP65
IP67
- Min. temperature
-25 °C
- Max. temperature
+55 °C
- Content
1 pc(s)
- Material (details)
Chrome-plated brass
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2118601 FESTO Receiver unit SOEG-E-M18-NA-S-2L 537711 Receiver 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2118601 FESTO Receiver unit SOEG-E-M18-NA-S-2L 537711 Receiver 1 pc(s)
Information
Information 2118601 FESTO Receiver unit SOEG-E-M18-NA-S-2L 537711 Receiver 1 pc(s)
Description
Receiver SOEG-E-M18-NA-S-2L round design. Design = round, according to standard EN 60947-5-2, approval = (* RCM mark, * C UL US LISTED (oil)), CE mark (see declaration of conformity) = after EU EMC Directive, material note = copper and PTFE-free
This text is machine translated.
This text is machine translated.
Hints
For more information on this 537711, please refer to its datasheet under 'downloadable documents'
