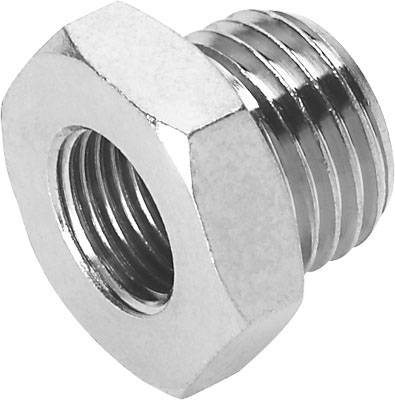

FESTO Reducer 8069236 NPFC-R-G34-G12-MF-P50 Internal thread G1/2" 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 1.92 / piece)
€ 1.92
plus VAT.
14-day return policy included
Highlights & Details
Technical specifications
- Product Weight: 39.3 g
- Operating medium
According to ISO 8573-1:2010 [compressed air -:-:-]
- Product type
Reducer
- Internal thread
G1/2"
- Manufacturer part #
8069236
- Vacuum
-0.95 bar
- Max. operating pressure
50 bar
- Min. operating pressure
-0.95 bar
- Operating medium
Druckluft nach ISO8573-1:2010 [-:-:-]
- Material
Brass
- Material properties
nickel plated
- Max. ambient temperature
+150 °C
- Min. ambient temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2125309 FESTO Reducer 8069236 NPFC-R-G34-G12-MF-P50 Internal thread G1/2" 1 pc(s)
Description
Reducer nipple NPFC-R-G34-G12-MF-P50 material thread gland = Brass, nickel-plated, container size = 50, operating pressure = -0,95 - 50 bar, operating according to ISO 8573-1:2010 [medium = compressed air -:-:-], corrosion resistance class KBK = 1 - Low corrosion stress
