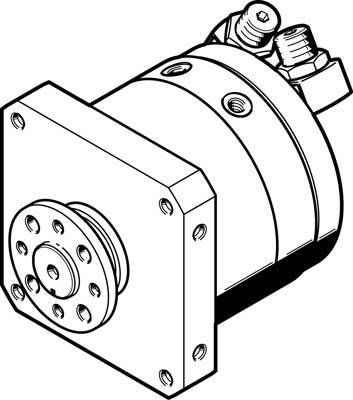

FESTO Rotary actuator 1145093 DSM-T-16-270-P-FW-A-B Enclosure material: Aluminium wrought alloy 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 415.97 / piece)
€ 415.97
plus VAT.
14-day return policy included
Highlights & Details
Technical specifications
- Swivel angle: 270 deg
- Design: Swivel Wing
- Operating medium
Compressed air according to ISO 8573-1:2010 [7:-:-]
- Product type
Rotary actuator
- Max. operating pressure
10 bar
- Manufacturer part #
1145093
- Weight
690 g
- Connection
M5
- Size
16
- Min. operating pressure
2.5 bar
- Operating medium
Compressed air
- Sealant
TPE-U
- Enclosure material
Aluminium wrought alloy
- Material
Aluminium wrought alloy
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-10 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2122049 FESTO Rotary actuator 1145093 DSM-T-16-270-P-FW-A-B Enclosure material: Aluminium wrought alloy 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2122049 FESTO Rotary actuator 1145093 DSM-T-16-270-P-FW-A-B Enclosure material: Aluminium wrought alloy 1 pc(s)
Description
Swivel drive DSM-T -16-270-P-FW-A-B size = 16, attenuation angle = 1.4 deg, setting range swivel angle = 0 - 270 deg, swivel angle = 0 - 270 deg, dampening = P: elastic damping rings/boards on both sides
