FESTO Rotary actuator 13467 DSR-40-180-P 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 945.38 / piece)
€ 945.38
plus VAT.
14-day return policy included
Highlights & Details

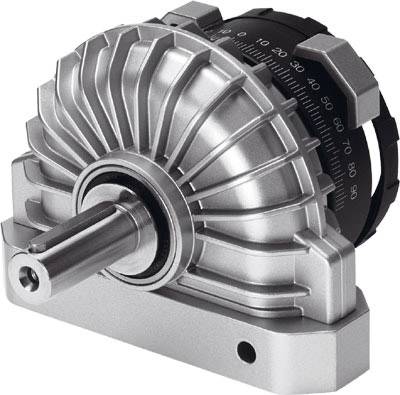

Rotary actuator DSR-40-180-P
Technical specifications
- How it works: double-acting, ambient temperature: -10 °C to 60 °C, Product Weight 2400 g
- Operating medium
Compressed air according to ISO 8573-1:2010 [7:-:-]
- Product type
Rotary actuator
- Max. operating pressure
8 bar
- Material (details)
Steel, NBR
- Manufacturer part #
13467
- Weight
2400 g
- Connection
G 1/ 4
- Size
40
- Operating pressure (min.)
1.5 bar
- Operating medium
Compressed air
- Sealant
NBR
- Material
Steel
- Medium
Compressed air
- Max. ambient temperature
60 °C
- Min. ambient temperature
-10 °C
- Operating principle
Double-acting
- UKCA
yes
