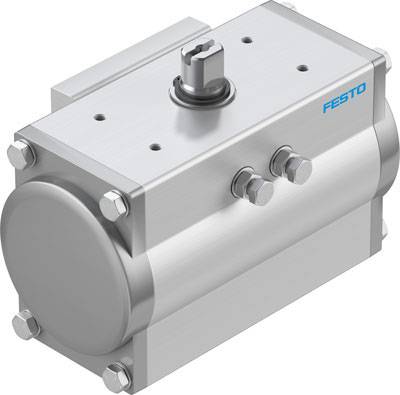

FESTO Rotary actuator 8047615 DFPD-40-RP-90-RD-F0507 Enclosure material: Aluminium wrought alloy 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 138.65 / piece)
€ 138.65
plus VAT.
14-day return policy included
Highlights & Details
Rotary actuator DFPD-40-RP-90-RD-F0507
Technical specifications
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Rotary actuator
- Max. operating pressure
8 bar
- Material (details)
Aluminum wrought alloy
- Min. device temperature
-20 °C
- Device temperature (max.)
80 °C
- Manufacturer part #
8047615
- Type
Swivel drive DFPD-40-RP-90-RD-F0507 Size Actuator = 40, flange drilling pattern = F0507, swivel angle = 90 deg, adjustment range end position at 0° = -5 - 5 deg, adjustment range end position at 90° = -5 - 5 deg
- Weight
1882 g
- Size
40
- Operating medium
Compressed air
- Sealant
NBR
- Pneumatics connector
G1/8"
- Enclosure material
Aluminium wrought alloy
- Piston rod material
Aluminium (die-cast)
- Material
Steel
- Medium
Compressed air
- Max. ambient temperature
+80 °C
- Min. ambient temperature
-20 °C
- Operating principle
Double-acting
- UKCA
yes
