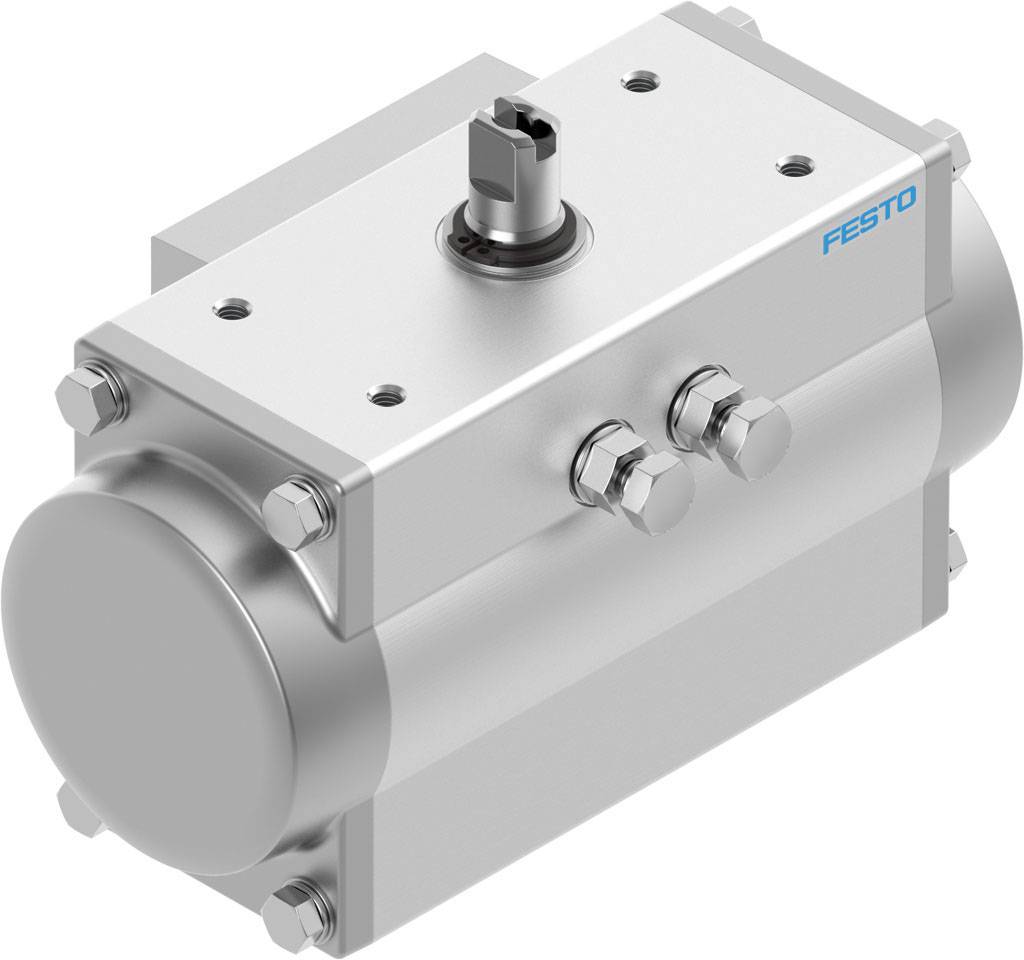

FESTO Rotary actuator 8047627 DFPD-20-RP-90-RS30-F04-R3-EP Enclosure material: Aluminium wrought alloy 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 147.05 / piece)
€ 147.05
plus VAT.
14-day return policy included
Highlights & Details
Technical specifications
- Swivel angle: 90 deg
- Design: rack/pinion
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Rotary actuator
- Max. operating pressure
8 bar
- Manufacturer part #
8047627
- Weight
1371 g
- Connection
G1/8
- Size
20
- Min. operating pressure
2 bar
- Operating medium
Compressed air
- Sealant
NBR
- Enclosure material
Aluminium wrought alloy
- Piston rod material
Aluminium (die-cast)
- Material
Aluminium wrought alloy
- Max. ambient temperature
+80 °C
- Min. ambient temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2124957 FESTO Rotary actuator 8047627 DFPD-20-RP-90-RS30-F04-R3-EP Enclosure material: Aluminium wrought alloy 1 pc(s)
Description
Swivel drive DFPD-20-RP-90-RS30-F04-R3-EP size actuator = 20, flange drilling pattern = F04, swivel angle = 90 deg, adjustment range end position at 0° = -5 - 5 deg, adjustment range end position at 90° = -5 - 5 deg
